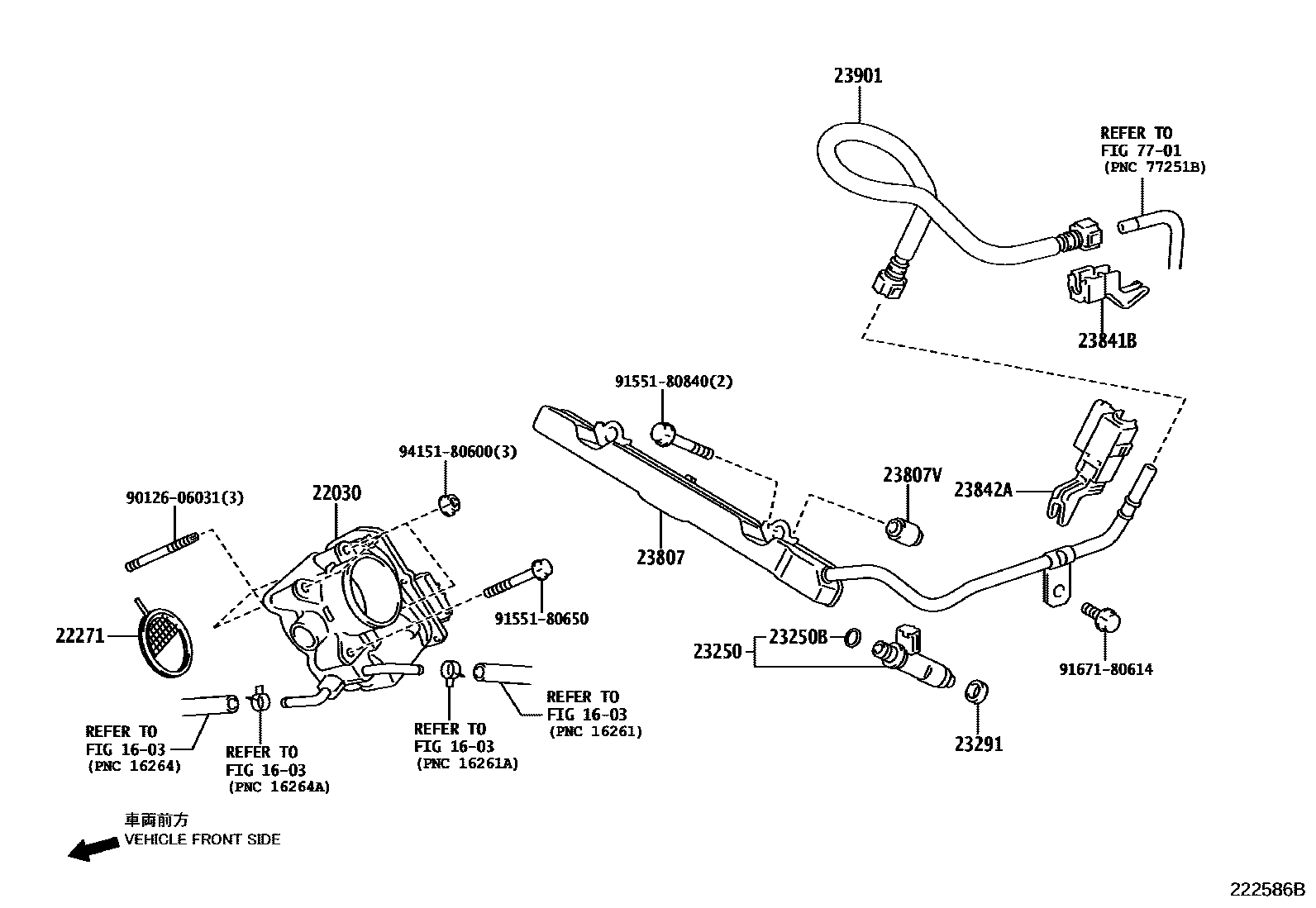

Toyota RACTIS — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
9012606031
main90126-06031
9155180650
main91551-80650
9155180840
main91551-80840
9167180614
main91671-80614
9415180600
main94151-80600
17 parts on this diagram · 1 diagram in section
FUEL INJECTION SYSTEM for Toyota RACTIS
This section contains 17 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota RACTIS. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, INJECTOR ASSY, FUEL, RING, O(FOR FUEL INJECTOR).
