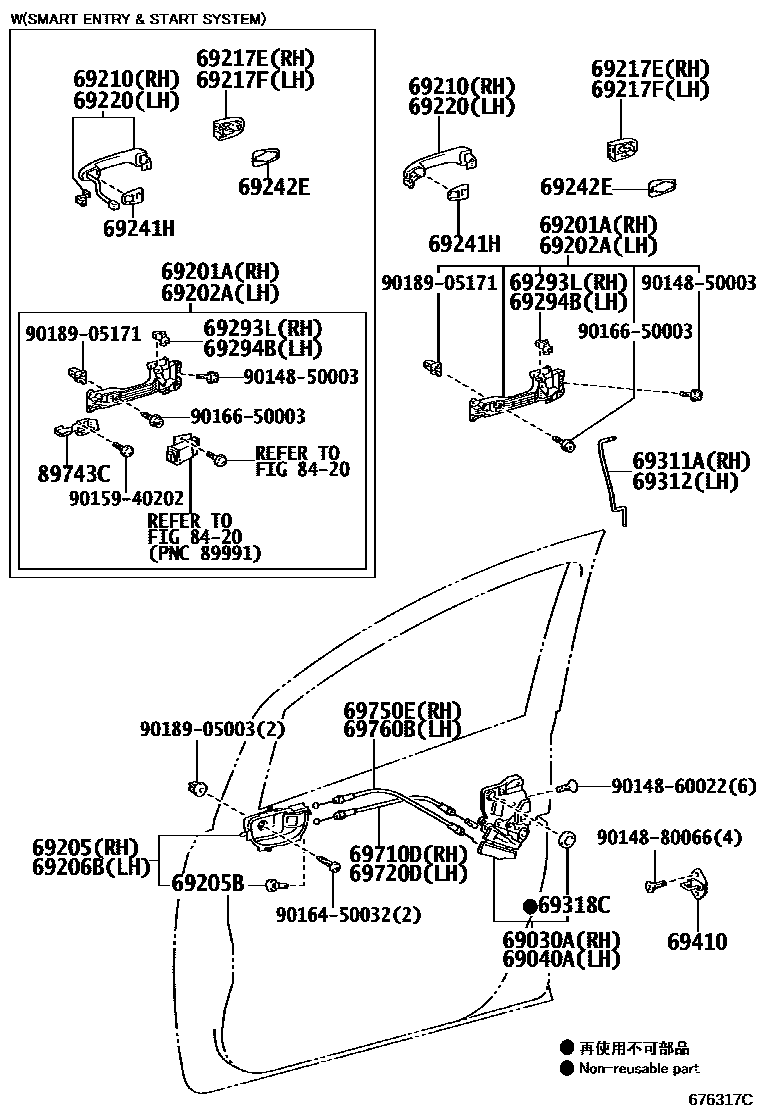

Toyota RACTIS — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
L PACKAGE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
L PACKAGE
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
L PACKAGE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
L PACKAGE,SUPER WHITE 2,040
L PACKAGE,WHITE PEARL CS.,070
L PACKAGE,SILVER M.M.,1E7
L PACKAGE,GRAY ME.,1G2
L PACKAGE,BLACK MC.,209
L PACKAGE,RED M.M.,3R3
L PACKAGE,BLUE ME.,8T4
L PACKAGE,BLUE ME.,8T7
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
L PACKAGE,SUPER WHITE 2,040
L PACKAGE,WHITE PEARL CS.,070
L PACKAGE,SILVER M.M.,1E7
L PACKAGE,GRAY ME.,1G2
L PACKAGE,BLACK MC.,209
L PACKAGE,RED M.M.,3R3
L PACKAGE,BLUE ME.,8T4
L PACKAGE,BLUE ME.,8T7
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
L PACKAGE,SUPER WHITE 2,040
L PACKAGE,WHITE PEARL CS.,070
L PACKAGE,SILVER M.M.,1E7
L PACKAGE,GRAY ME.,1G2
L PACKAGE,BLACK MC.,209
L PACKAGE,RED M.M.,3R3
L PACKAGE,BLUE ME.,8T4
L PACKAGE,BLUE ME.,8T7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
L PACKAGE,RH
L PACKAGE,LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450032
main90164-50032
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
33 parts on this diagram · 1 diagram in section
