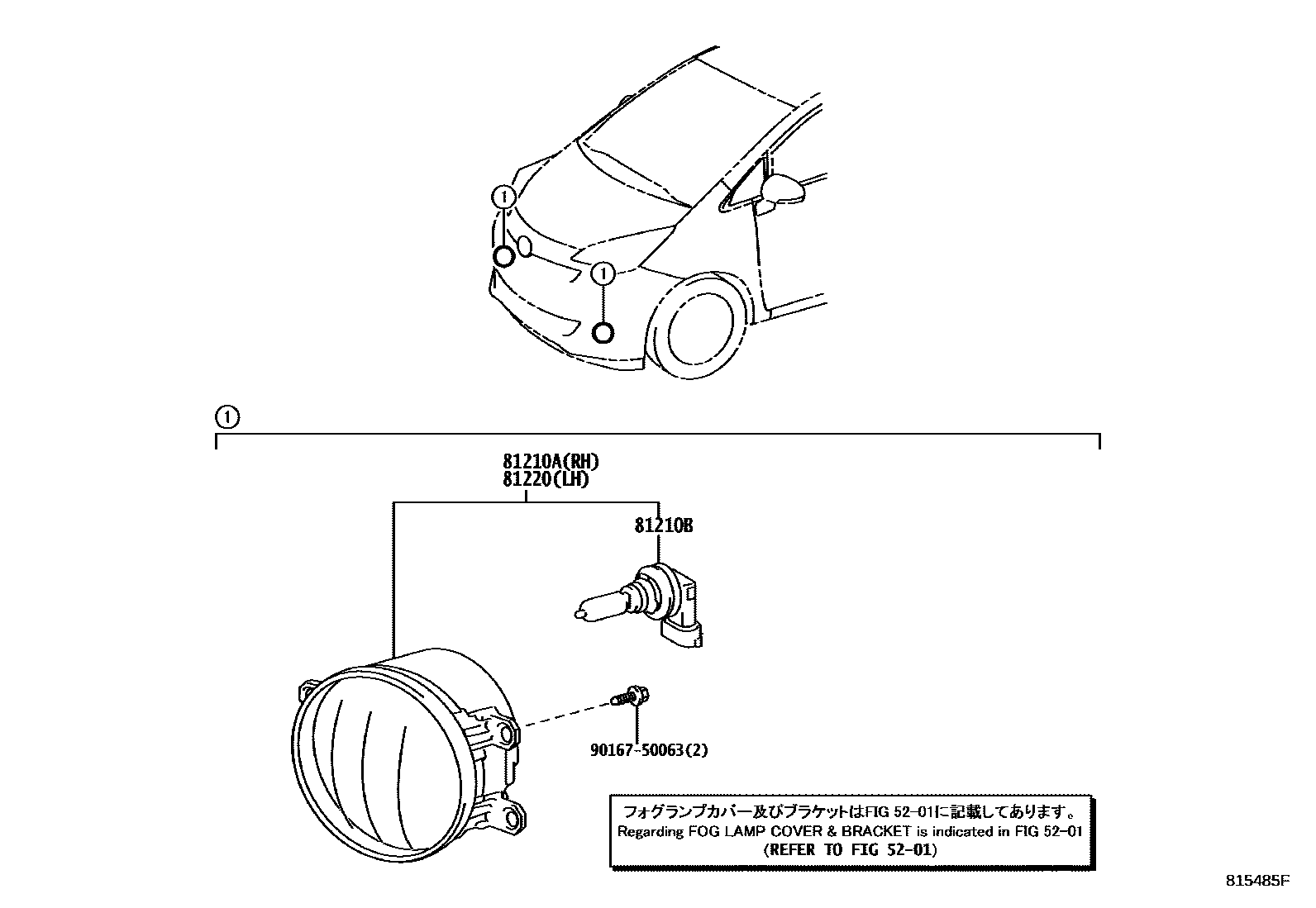

Toyota RACTIS — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D042i201011-201106

FRONT FOG LAMP-WITH(DOP)

81210BBULB, FOG LAMP

main90981-13075i201405

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,PHILIPS

main90981-13081i201106-201405

12V 55W,HALOGEN,FRONT FOG LAMP-WITH,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0D042i201011-201106

FRONT FOG LAMP-WITH(DOP)

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota RACTIS

This section contains 5 genuine Toyota parts for the FOG LAMP system of the Toyota RACTIS. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
