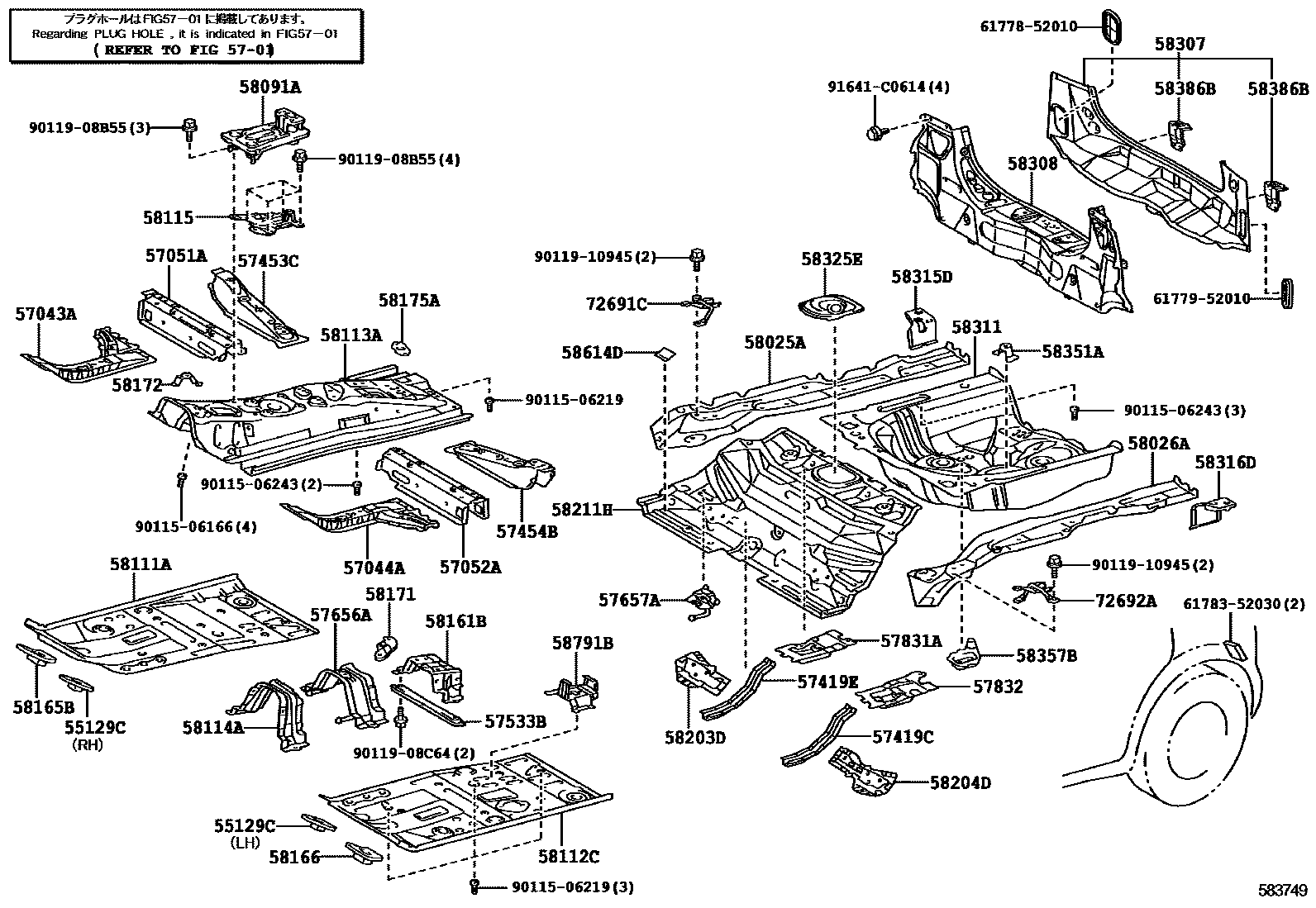

Toyota RACTIS — FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-52050iSCP100200910-200912

RH

main55129-52051iSCP100201001

RH

main55139-52020iSCP100200910-200912

LH

main55139-52021iSCP100201001

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52020iSCP100200910-201008

sub57043-52021

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52040iSCP100200910-201008

sub57044-52041

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52010iSCP100200910

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52010iSCP100200910

57419CREINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57429-52080iSCP100200910

57419EREINFORCEMENT, FRONT FLOOR UNDER, RH NO.2

main57419-52070iSCP100200910

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-52020iSCP100200910

sub57453-52021

sub57455-52040

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-52010iSCP100200910

sub57454-52011

sub57456-52040

57533BBRACE, FRONT FLOOR, CENTER

main57533-52010iSCP100200910-201008

sub57533-52011

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57805-52130iSCP100200910-201008

sub57805-52131

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-52010iSCP100200910

57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1

main57801-52110iSCP100200910

57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2

main57802-52110iSCP100200910

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52010iSCP100200910

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52010iSCP100200910

58091AREINFORCEMENT SET, BODY FITTING

main58091-52040iSCP100200910

58111APAN, FRONT FLOOR, RH

main58111-52170iSCP100200910

58112CPAN, FRONT FLOOR, LH

main58112-52904iSCP100200910-201008

sub58112-52921

58113APANEL, FRONT FLOOR, CENTER

main58113-52904iSCP100200910

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52070iSCP100200910-201008

sub58114-52071

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58085-52010iSCP100200910

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52090iSCP100200910-201008

sub58161-52070

58165BCOVER, FRONT FLOOR, RH

main58165-52010iSCP100200910-200912

main58165-52011iSCP100201001

58166COVER, FRONT FLOOR, LH

main58166-52010iSCP100200910-200912

main58166-52011iSCP100201001

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090iSCP100200910-201008

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iSCP100200910-201008

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iSCP100200910-201008

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-52060iSCP100200910

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-52060iSCP100200910-201008

sub58204-52061

58211HPAN, CENTER FLOOR

main58211-52200iSCP100200910

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52440iSCP100200910-201008

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-52010iSCP100200910

58311PAN, REAR FLOOR

main58311-52110iSCP100200910

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52160iSCP100200910

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52180iSCP100200910

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52050iSCP100200910

58351ABRACKET, SPARE WHEEL CARRIER

main58351-52070iSCP100200910

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-52030iSCP100200910

sub58357-52031

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-52040×2iSCP100200910

58614DSHEET, CENTER FLOOR SILENCER, RH

main58614-52060iSCP100200910

58791BCARRIER, JACK

main58791-52060iSCP100200910

72691CSTRIKER, RR SEAT CUSHION LOCK, NO.1

main71405-52030iSCP100200910-201008

72692ASTRIKER, RR SEAT CUSHION LOCK, NO.2

main71406-52030iSCP100200910-201008

6177852010STRENGTH, QUARTER PANEL HORIZONTAL, LOWER REAR RH

main61778-52010

6177952010STRENGTH, QUARTER PANEL HORIZONTAL, LOWER REAR LH

main61779-52010

6178352030PATCH, QUARTER PANEL INNER

main61783-52030

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

9011908B55

main90119-08B55

9011908C64

main90119-08C64

9011910945

main90119-10945

91641C0614

main91641-C0614

55 parts on this diagram · 1 diagram in section
