Toyota RACTIS — FLOOR INSULATOR

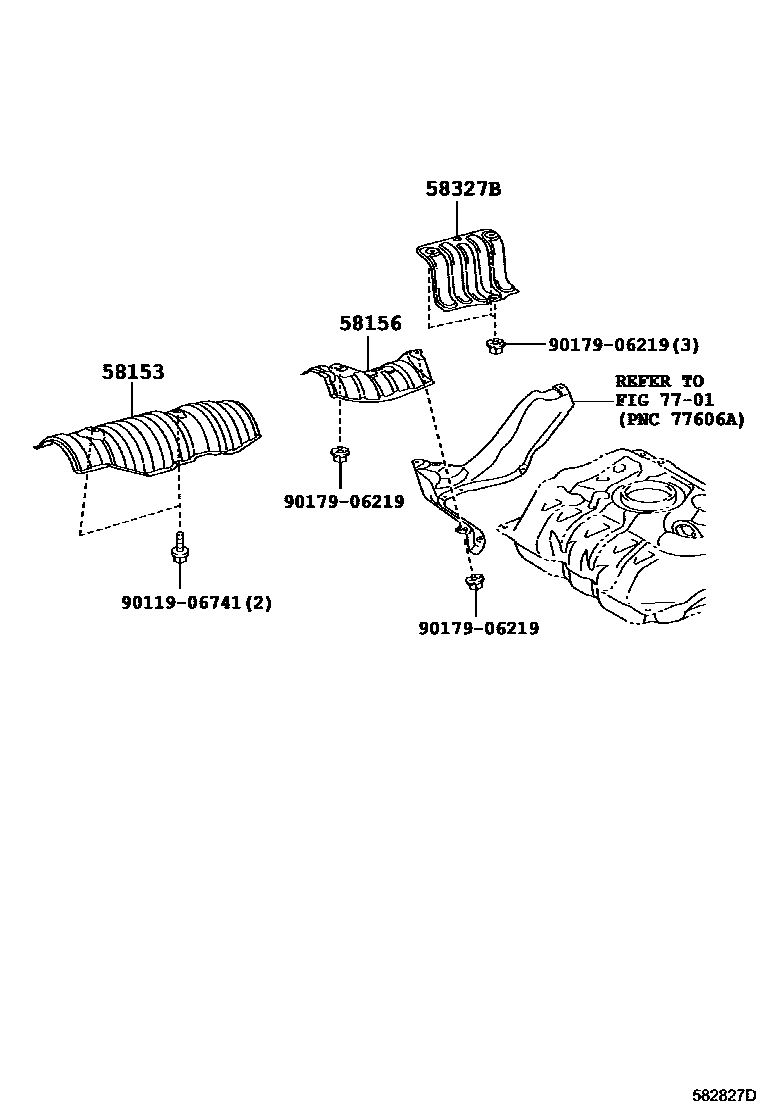

Parts diagram

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52070i200910-200912

main58153-52071i201001-201008

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52020i200910

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52110i200910-200912

main58327-52111i201001

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906741

main90119-06741

9017906219

main90179-06219

6 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota RACTIS

This section contains 6 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota RACTIS. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.4, INSULATOR, MAIN MUFFLER HEAT, FUEL TANK & TUBE.
