Toyota RACTIS — EXHAUST GAS RECIRCULATION SYSTEM

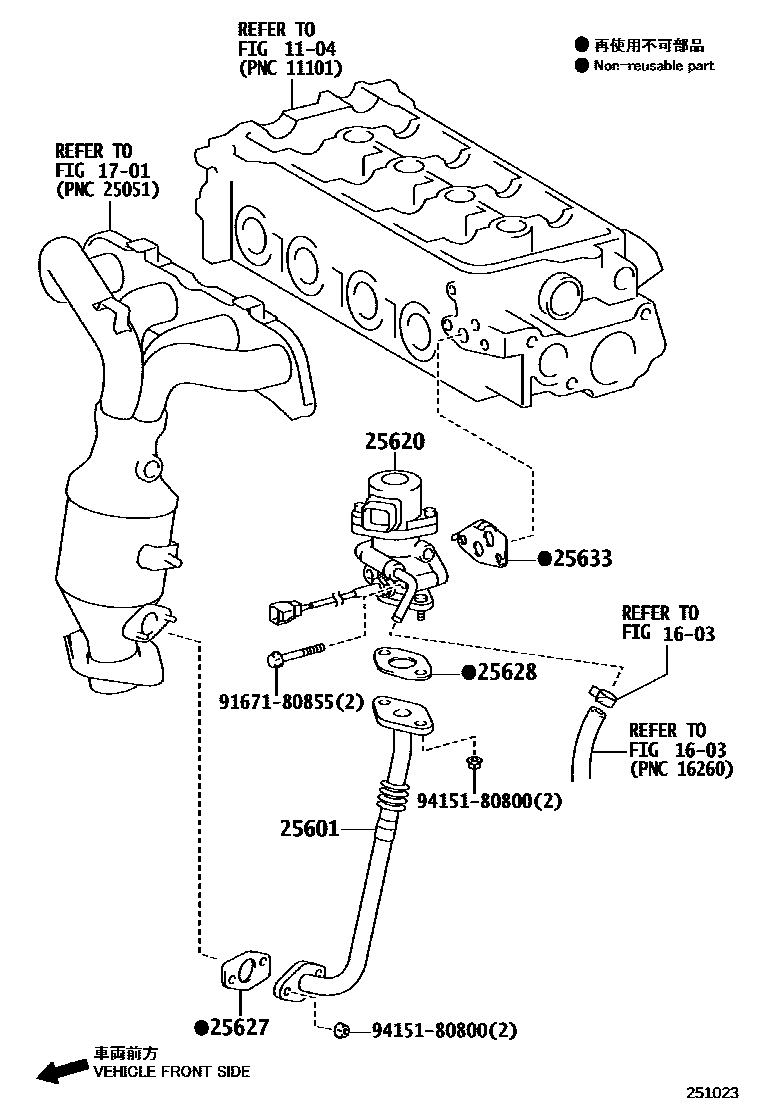

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-23021i200910

25620VALVE ASSY, EGR

main25620-23010i200910

25627GASKET, EGR VALVE

main25627-74080i200910

25628GASKET, EGR INLET

main25628-28020i200910

25633GASKET, EGR VALVE

main25633-23010i200910

9167180855

main91671-80855

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota RACTIS

This section contains 10 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota RACTIS. Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR.
