Toyota RACTIS — ELECTRONIC FUEL INJECTION SYSTEM

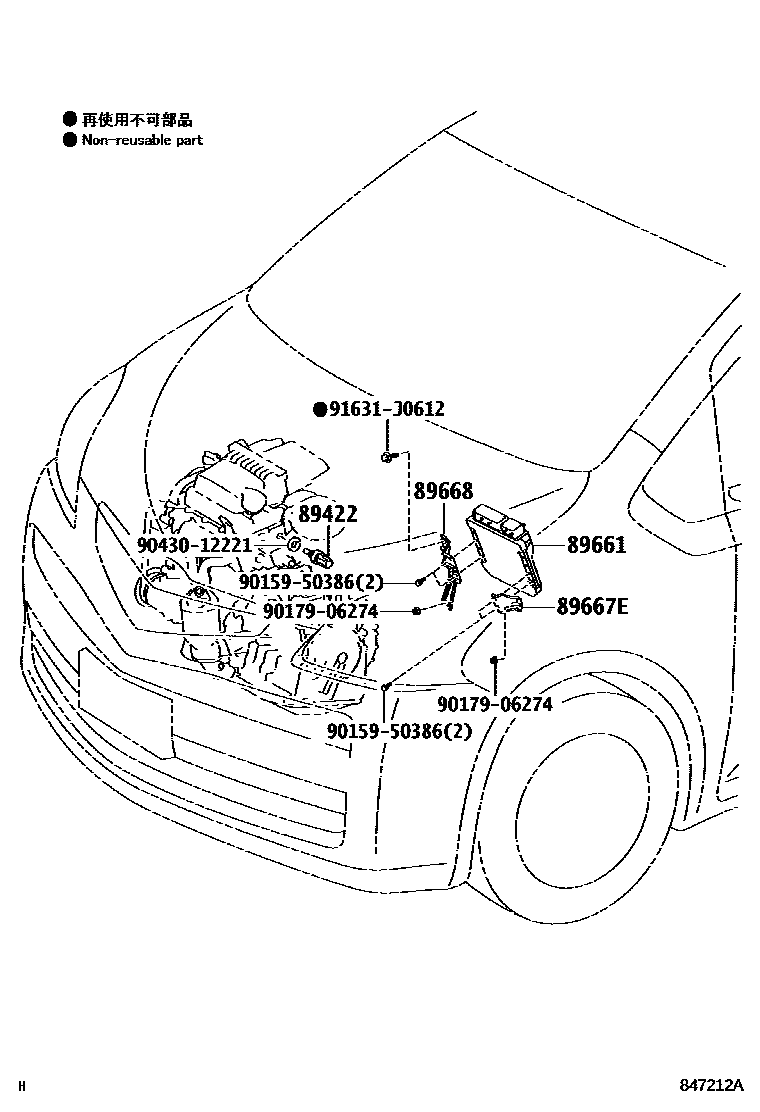

Parts diagram

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200910

89661COMPUTER, ENGINE CONTROL

main89661-52J00i200910

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52190i200910

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52210i200910

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

91631J0612

main91631-J0612

8 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota RACTIS

This section contains 8 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota RACTIS. Key components include: SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER, NO.1, BRACKET, ENGINE CONTROL COMPUTER, NO.2.
