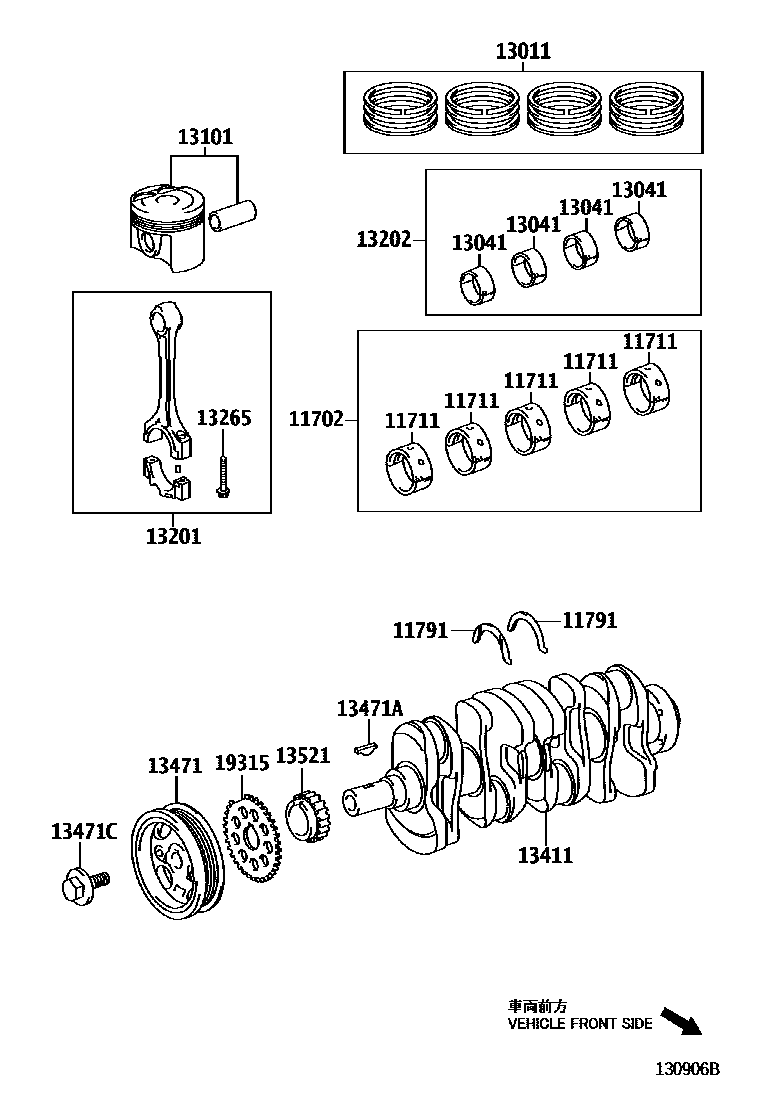

Toyota RACTIS — CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-23061i200910

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-23061-02×5i200910

MARK2,REFER REPAIR MANUAL

main11701-23061-03×5i200910

MARK3,REFER REPAIR MANUAL

main11701-23061-04×5i200910

MARK4,REFER REPAIR MANUAL

main11701-23061-05×5i200910

MARK5,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-23030×2i200910

STD

main11792-23030×2i200910

O/S 0.125

main11793-23030×2i200910

O/S 0.25

13011RING SET, PISTON

main13011-23071i200910-201003

STD

main13011-23072i201003-201010

STD

13041BEARING, CONNECTING ROD

main13041-23031×4i200910

13101PISTON SUB-ASSY, W/PIN

main13101-23030×4i200910-201002

STD

main13101-23031×4i201002

STD

13201ROD SUB-ASSY, CONNECTING

main13201-23030×4i200910

13202BEARING SET, CONNECTING ROD

main13204-23031i200910

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-23010×8i200910

13411CRANKSHAFT

main13411-23020i200910

13471PULLEY, CRANKSHAFT

main13470-23030i200910

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001i200910

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12382i200910

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-23040i200910

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-23010i200910

15 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota RACTIS

This section contains 15 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota RACTIS. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
