Toyota RACTIS — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52490-B1supersedes 74231-52350-B0iSCP100200910-201008

L PACKAGE,SILVER,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52390-B1supersedes 74232-52270-B0iSCP100200910-201008

L PACKAGE,SILVER,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-52120-B1supersedes 74271-52080-B0iSCP100200910-201008

L PACKAGE,SILVER,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-52110-B1supersedes 74272-52070-B0iSCP100200910-201008

L PACKAGE,SILVER,TRIM1#

74310VISOR ASSY, RH

main74310-52A70-B0iSCP100200910-201008

LT. GRAY,TRIM1#

74317COVER, VISOR BRACKET, RH

main74317-52010-B0iSCP100200910-201008

GRAY,TRIM1#

74318COVER, VISOR BRACKET, LH

main74318-52020-B0iSCP100200910-201008

GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-52B00-B0iSCP100200910-201008

LT. GRAY,TRIM1#

74336CLIP, VISOR ARM SET

main74336-52010×2iSCP100200910

74348BHOLDER, VISOR, RH

main74348-12040-B4iSCP100200910-201008

GRAY,TRIM1#

74348CHOLDER, VISOR, LH

main74348-12040-B4iSCP100200910-201008

GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-52020-B1×3iSCP100200910-201008

LT.GRAY,TRIM1#

74610SGRIP ASSY, ASSIST

main74610-52030-B1iSCP100200910-201008

LT.GRAY,TRIM1#

74612COVER, ASSIST GRIP

main74612-52030-B1×8iSCP100200910-201008

LT.GRAY,TRIM1#

9046710203

main90467-10203

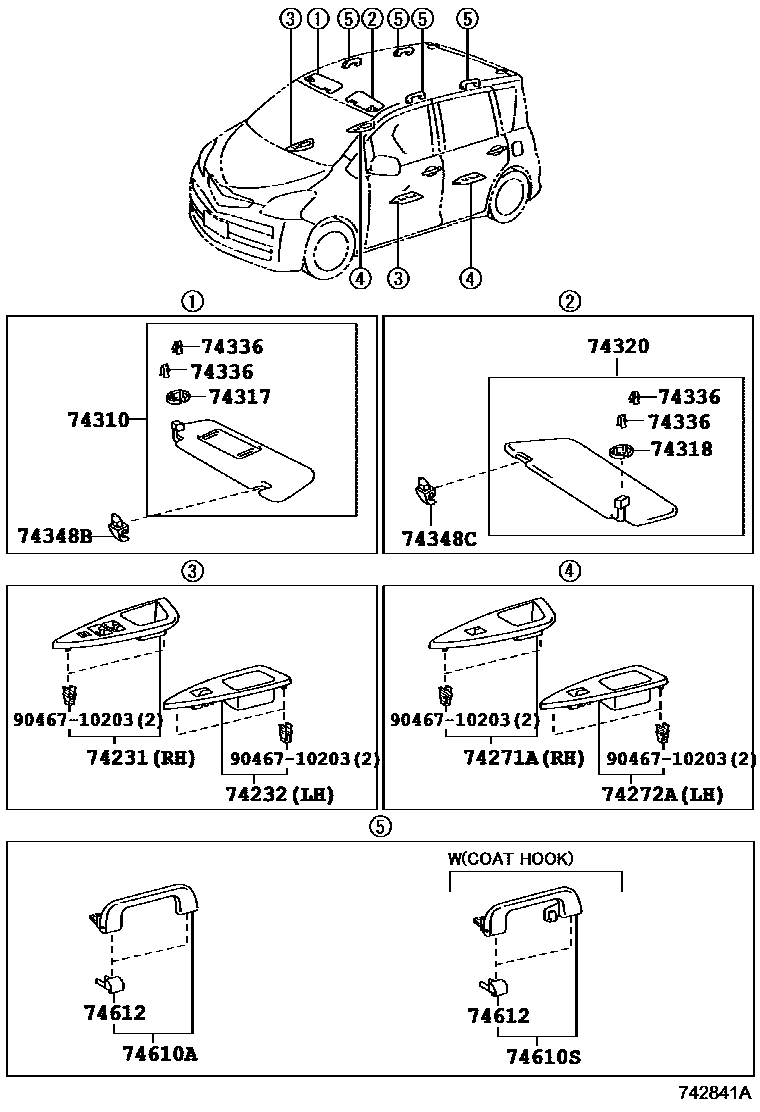

15 parts on this diagram · 1 diagram in section
