Toyota RACTIS — ALTERNATOR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

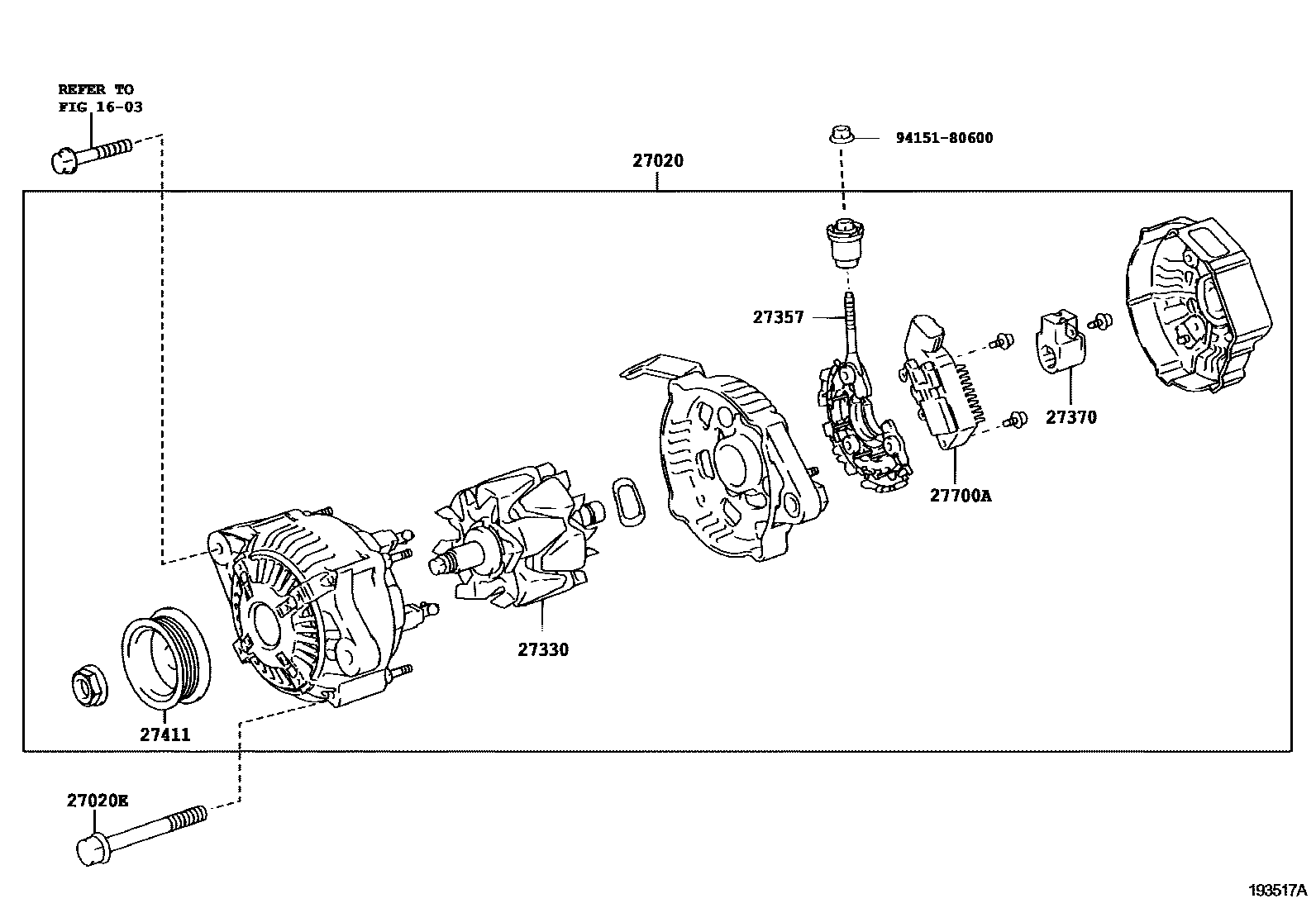

27020ALTERNATOR ASSY

main27060-21131i201011-201207

12V 80A

main27060-21180i201208-201405

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i201011-201405

27330ROTOR ASSY, ALTERNATOR

main27330-30130i201011-201208

main27330-47310i201208-201405

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i201011-201208

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i201011-201208

27411PULLEY, ALTERNATOR

main27411-70140i201011-201208

27700AREGULATOR ASSY, GENERATOR

main27700-28080i201011-201208

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota RACTIS

This section contains 25 genuine Toyota parts for the ALTERNATOR system of the Toyota RACTIS. Key components include: RADIATOR & WATER OUTLET, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, PLATE, BEARING RETAINER, ALTERNATOR.
