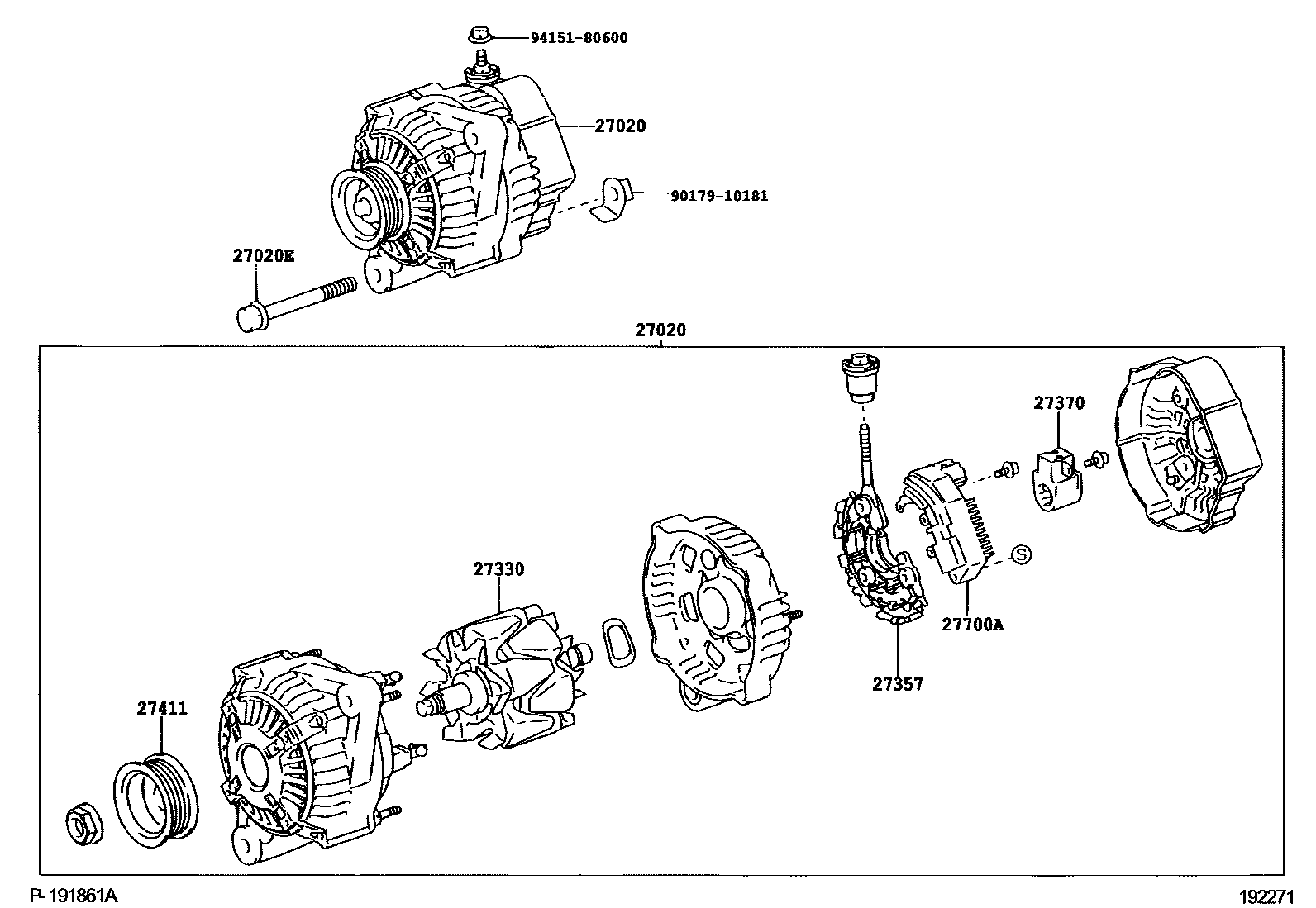

Toyota RACTIS — ALTERNATOR

27020ALTERNATOR ASSY

main27060-23131i200910

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10468i200910

27330ROTOR ASSY, ALTERNATOR

main27330-30130i200910

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i200910

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i200910

27411PULLEY, ALTERNATOR

main27411-22210i200910

27700AREGULATOR ASSY, GENERATOR

main27700-23040i200910

9017910181

main90179-10181

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota RACTIS

This section contains 9 genuine Toyota parts for the ALTERNATOR system of the Toyota RACTIS. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), ROTOR ASSY, ALTERNATOR, HOLDER, ALTERNATOR, W/RECTIFIER, HOLDER ASSY, ALTERNATOR BRUSH.
