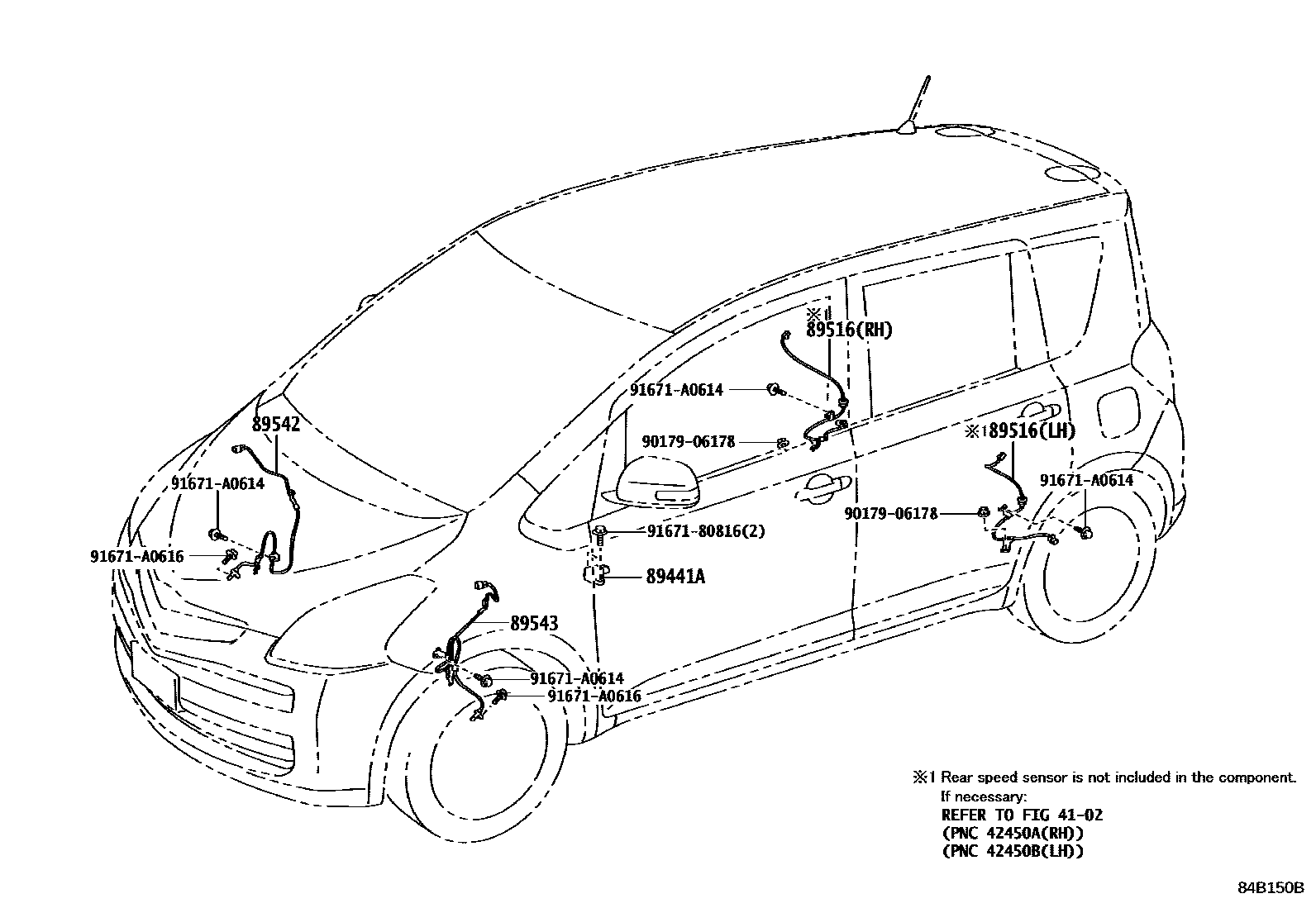

Toyota RACTIS — ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

89441ASENSOR, DECELERATION

main89440-52070iSCP100200910

89516WIRE, SKID CONTROL SENSOR

main89516-52110iSCP100200910

RH

main89516-52120iSCP100200910

LH

89542SENSOR, SPEED, FRONT RH

main89542-52060iSCP100200910-201008

89543SENSOR, SPEED, FRONT LH

main89543-52060iSCP100200910-201008

9017906178

main90179-06178

9167180816

main91671-80816

91671A0614

main91671-A0614

91671A0616

main91671-A0616

9 parts on this diagram · 1 diagram in section
