Toyota QUICK DELIVERY — WINDSHIELD WIPER
85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1
85150BLINK ASSY, WIPER
85154PACKING, FRONT WIPER SHAFT
85160LINK ASSY, WINDSHIELD WIPER
85161BROD, WINDOSHIELD WIPER LINK
85192COVER, WINDSHIELD WIPER ARM
85212ABLADE, FR WIPER, RH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
9009905157
main90099-05157
9011906297
main90119-06297
9017908209
main90179-08209
9338116014
main93381-16014

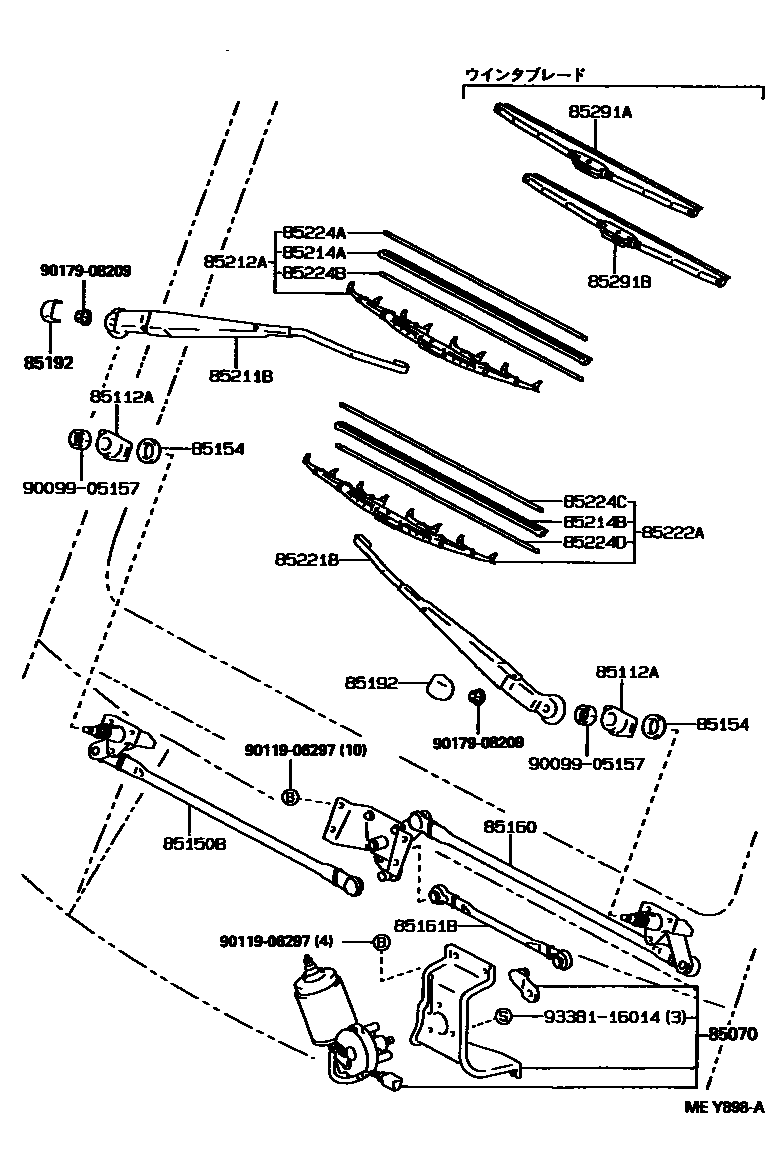

23 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota QUICK DELIVERY
This section contains 31 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota QUICK DELIVERY. Key components include: MOTOR & BRACKET ASSY, FRONT WIPER, MOTOR ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER SHAFT, NO.1, LINK ASSY, WIPER, PACKING, FRONT WIPER SHAFT.
