Toyota QUICK DELIVERY — WINDSHIELD WASHER

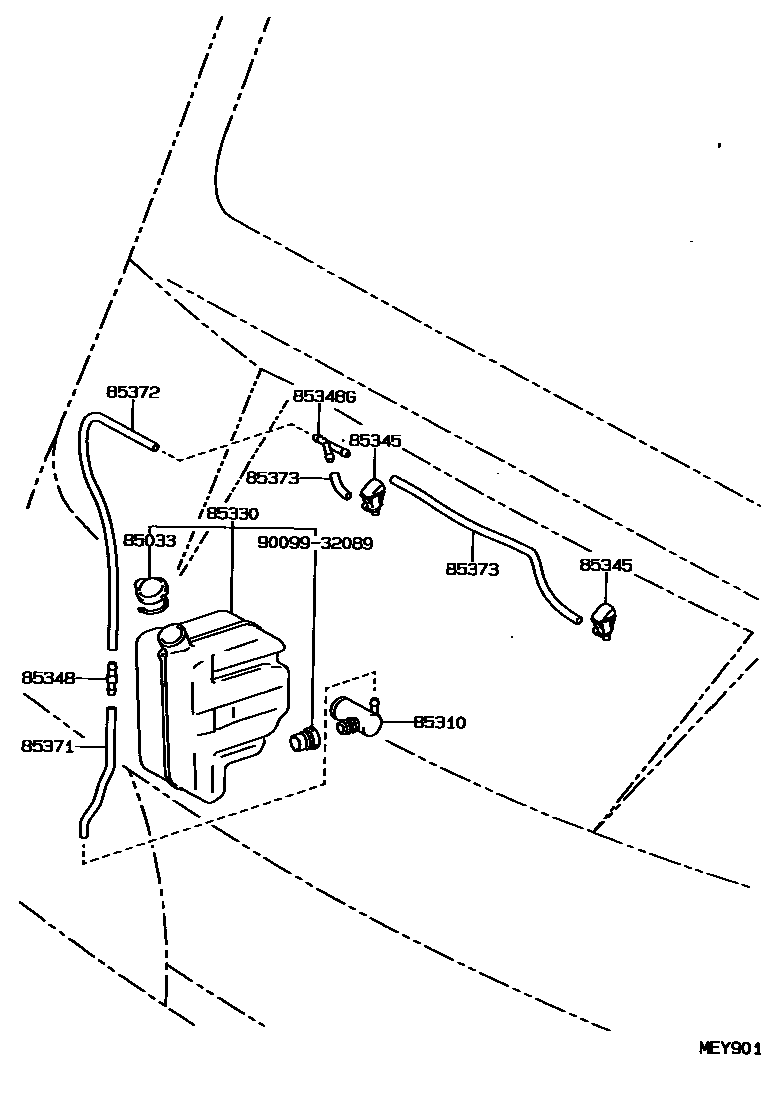

Parts diagram

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120i199505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i199505

main85310-90B00i199505-199604

main85330-25050i199604

main85330-35040i199610

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040i199505

85345NOZZLE, WINDSHIELD WASHER

main85035-95A05×2i199505

main85381-12050×2i199505

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i199505

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i199505

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i199505

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013i199505

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33384i199505

main90446-06013i199505

9009932089

main90099-32089

10 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota QUICK DELIVERY

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota QUICK DELIVERY. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, NOZZLE, WINDSHIELD WASHER, JOINT, WINDSHIELD WASHER HOSE, NO.1.
