Toyota QUICK DELIVERY — STANDARD TOOL

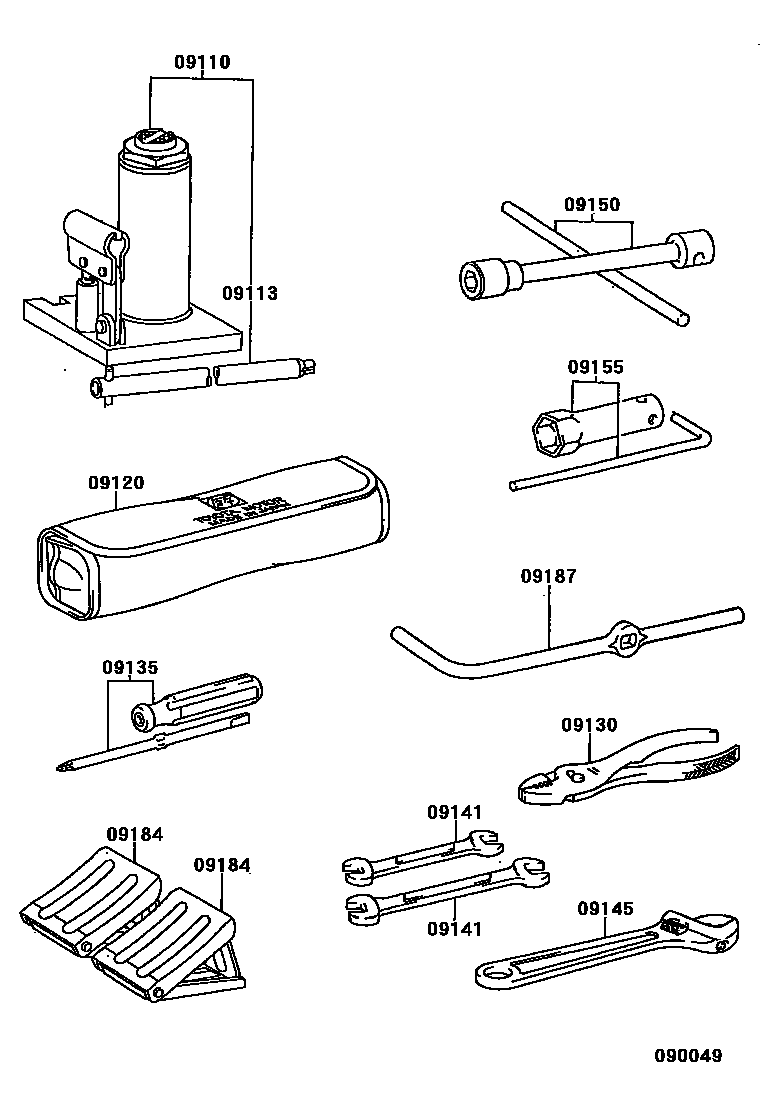

Parts diagram

09110JACK ASSY

main09110-25090i199605

main09110-36160i199505

main09111-26060i199505-199605

09113HANDLE, JACK

main09113-36060i199505

09120BAG, TOOL

main09120-28010i199505

main09120-36020i199505

09130PLIERS

main99913-11500i199505

09135DRIVER, SCREW

main99915-10700i199505

09141SPANNER

main99914-10810i199505

main99914-11214i199505

09145WRENCH, MONKEY

main99911-11200i199505

09150WRENCH, HUB NUT BOX

main09150-25010i199505-199708

main09150-25020i199505

main09150-25030i199708

main09150-26030i199505

09155WRENCH, SPARK PLUG

main09155-74010i199610

09184STOPPER, WHEEL

main09184-00010×2i199505

main09184-60010×2i199505

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070i199505

11 parts on this diagram · 2 diagrams in section

STANDARD TOOL for Toyota QUICK DELIVERY

This section contains 14 genuine Toyota parts for the STANDARD TOOL system of the Toyota QUICK DELIVERY. Key components include: JACK ASSY, HANDLE, JACK, EXTENSION SUB-ASSY, JACK HANDLE, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE.
