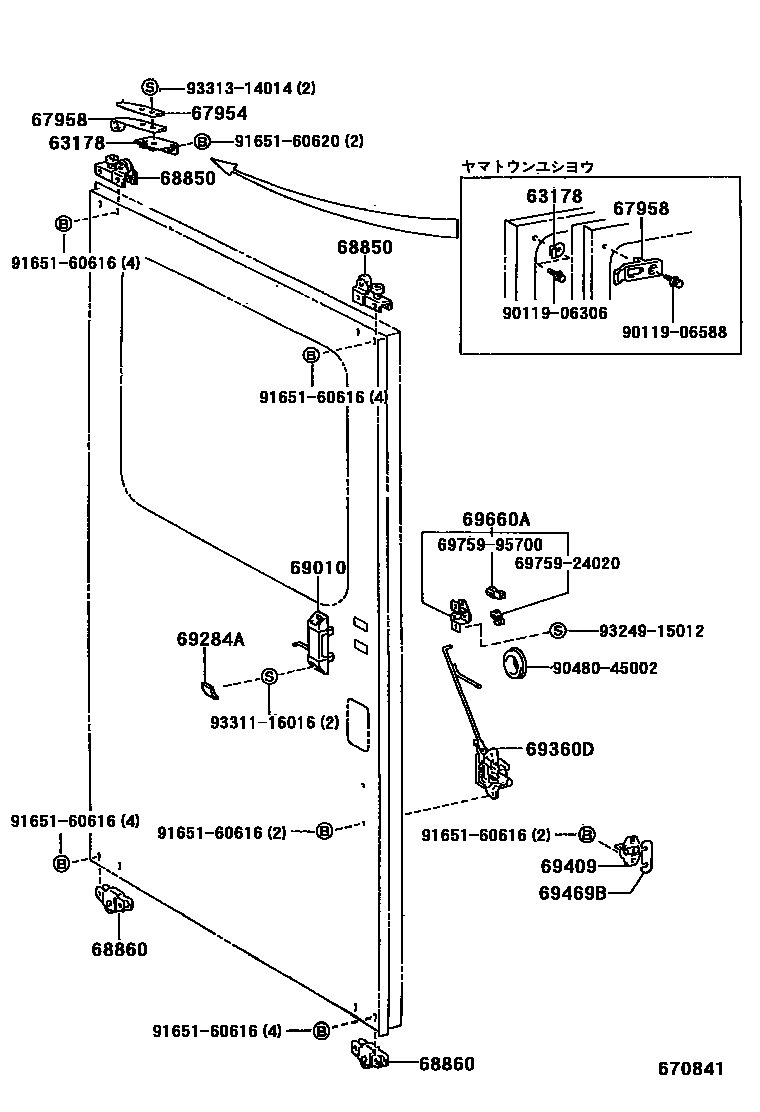

Toyota QUICK DELIVERY — SEPARATION DOOR LOCK & HANDLE
63178BRACKET, SEPARATION DOOR STOPPER
67954PLATE, SEPARATION DOOR STOPPER
67958STOPPER, SEPARATION DOOR
68850ROLLER ASSY, SEPARATION DOOR
68860ROLLER ASSY, SEPARATION DOOR, LOWER
69010HANDLE SUB-ASSY, SEPARATION DOOR, NO.1
BLUISH GRAY,TRIM1#
69284APLUG, SEPARATION DOOR HANDLE
BLUISH GRAY,TRIM1#
69360DLOCK ASSY, SEPARATION DOOR
69409STRIKER SUB-ASSY, SEPARATION DOOR LOCK
69469BSHIM, SEPARATION DOOR LOOK STRIKER
69660ACONTROL ASSY, SEPARATION DOOR REMOTE
6975924020SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-24020
6975995700SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-95700
9011906306
main90119-06306
9011906588
main90119-06588
9048045002
main90480-45002
9165160616
main91651-60616
9165160620
main91651-60620
9324915012
main93249-15012
9331116016
main93311-16016
9331314014
main93313-14014
21 parts on this diagram · 1 diagram in section
SEPARATION DOOR LOCK & HANDLE for Toyota QUICK DELIVERY
This section contains 21 genuine Toyota parts for the SEPARATION DOOR LOCK & HANDLE system of the Toyota QUICK DELIVERY. Key components include: BRACKET, SEPARATION DOOR STOPPER, PLATE, SEPARATION DOOR STOPPER, STOPPER, SEPARATION DOOR, ROLLER ASSY, SEPARATION DOOR, ROLLER ASSY, SEPARATION DOOR, LOWER.
