Toyota QUICK DELIVERY — METER

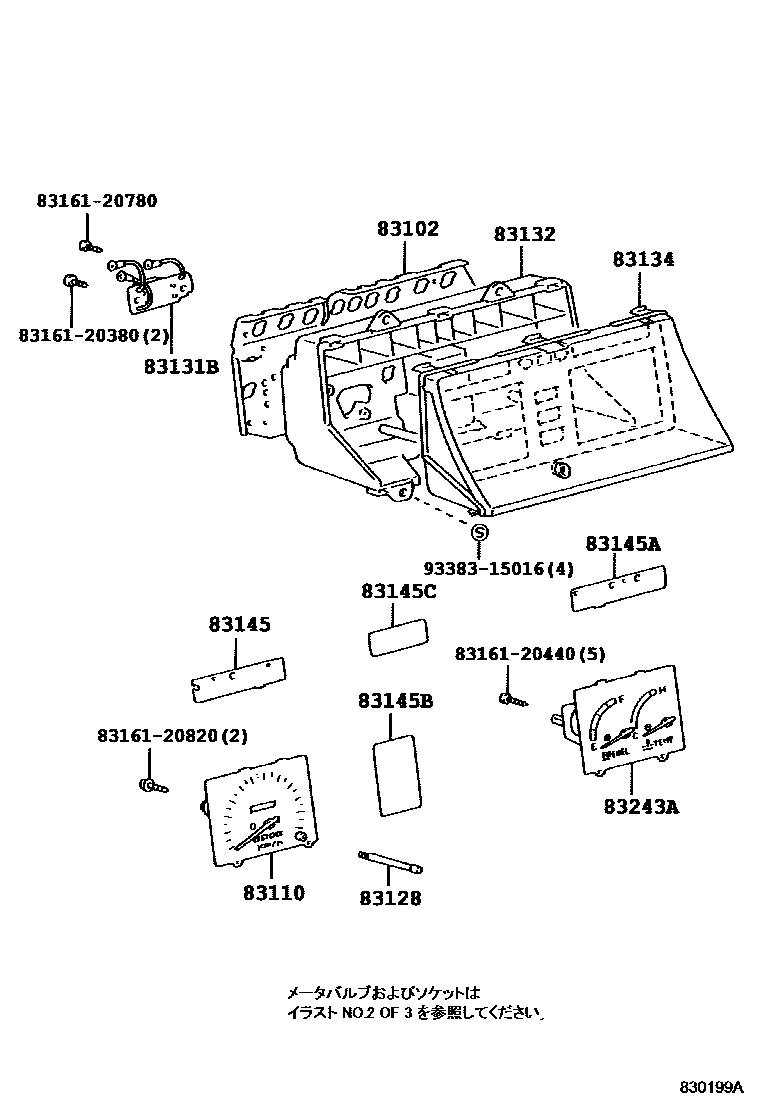

Parts diagram

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-25040i199505

main83247-90D00i199505-199708

main83861-25040i199708

83110SPEEDOMETER ASSY

main83110-25190i199505

main83110-25200i199505

83128KNOB, TRIP COUNTER

main83128-89300i199505

main83128-95J00i199505-199908

main83131-95J00i199610-199908

83131BDROPER, METER

main83131-25080i199505

83132CASE, COMBINATION METER

main83132-25020i199505

main83132-95402i199505

83134COVER, COMBINATION METER, NO.1

main83134-95706i199505

83145LENS, METER, NO.1

main83145-25040i199505

main83145-26780i199505

main83145-26800i199505

main83145-26820i199505

main83145-26840i199505

main83145-26860i199505

main83145-26880i199505

main83831-25020i199610-199712

main83841-25100i199712

83145ALENS, METER, NO.2

main83145-25060i199505

83145BLENS, METER, NO.3

main83145-95G20i199505

83145CLENS, METER, NO.4

main83145-95722i199505

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-25020i199505

main83882-25020i199610

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120780CASE, COMBINATION METER MIRROR, NO.1

main83161-20780

8316120820CASE, COMBINATION METER MIRROR, NO.1

main83161-20820

9338315016

main93383-15016

16 parts on this diagram · 9 diagrams in section

METER for Toyota QUICK DELIVERY

This section contains 61 genuine Toyota parts for the METER system of the Toyota QUICK DELIVERY. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, LAMP SUB-ASSY, METER.
