Toyota QUICK DELIVERY — FRONT FENDER APRON & DASH PANEL

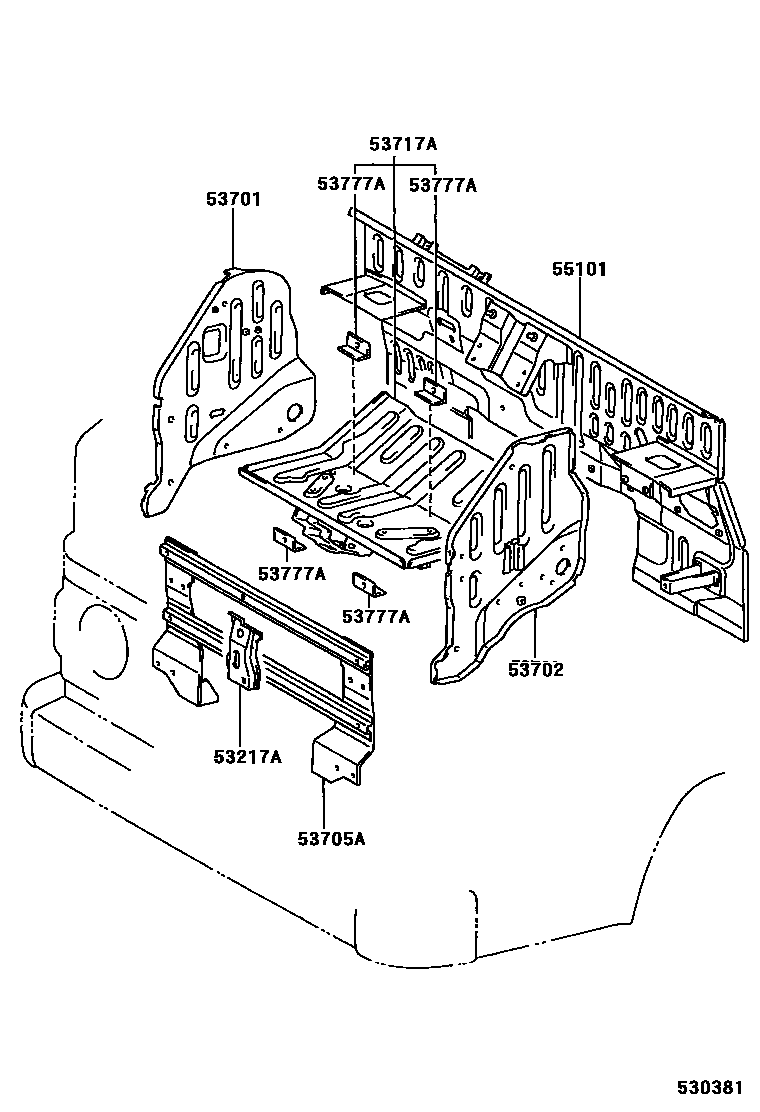

Parts diagram

53217ABRACE, HOOD LOCK SUPPORT

main53217-25010i199505

53701APRON SUB-ASSY, FRONT FENDER, RH

main53707-25010i199505

main53707-90D05i199505

main53707-90D07i199505

53702APRON SUB-ASSY, FRONT FENDER, LH

main53708-25010i199505-199610

main53708-25011i199610

main53708-90D05i199505

53705ABRACE SUB-ASSY, FENDER APRON, RH

main53705-25010i199505

53717APLATE, FENDER APRON

main53701-25010i199505-199908

main53701-25020i199610-199908

main53701-25040i199905

main53701-90D02i199505

53777ASUPPORT, BATTERY CARRIER, NO.2

main53777-25010×2i199505-199610

55101PANEL SUB-ASSY, DASH

main55101-25010i199505-199610

main55101-25020i199610

main55101-26010i199505

7 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota QUICK DELIVERY

This section contains 15 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota QUICK DELIVERY. Key components include: BRACE, HOOD LOCK SUPPORT, APRON SUB-ASSY, FRONT FENDER, RH, APRON SUB-ASSY, FRONT FENDER, LH, BRACE SUB-ASSY, FENDER APRON, RH, PLATE, FENDER APRON.
