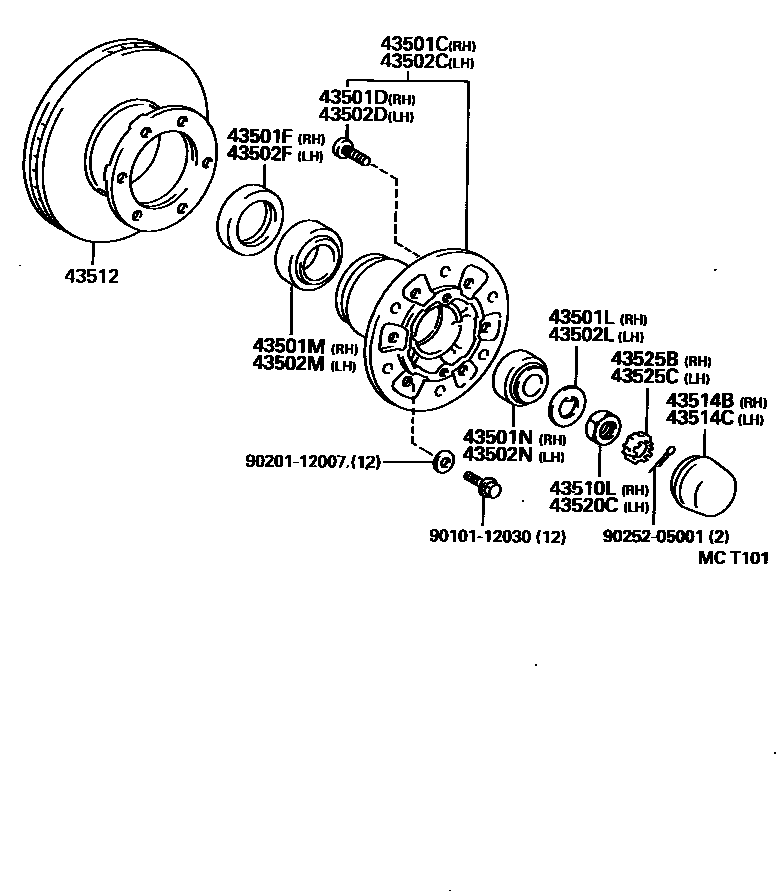

Toyota QUICK DELIVERY — FRONT AXLE HUB
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
43502HUB SUB-ASSY, FRONT AXLE
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
43510LNUT (FOR STEERING KNUCKLE RH)
43512DISC, FRONT
43514CAP, FRONT HUB GREASE
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43520CNUT (FOR STEERING KNUCKLE LH)
43525CAP, FRONT WHEEL ADJUSTING LOCK
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9010112030
main90101-12030
9020112007
main90201-12007
9025205001
main90252-05001
25 parts on this diagram · 3 diagrams in section
FRONT AXLE HUB for Toyota QUICK DELIVERY
This section contains 59 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota QUICK DELIVERY. Key components include: WASHER, CONE (FOR FRONT AXLE SHAFT RH), WASHER, CONE (FOR FRONT AXLE SHAFT LH), RING, SNAP (FOR FRONT DRIVE SHAFT RH), SPACER (FOR FRONT DRIVE SHAFT RH), RING, SNAP (FOR FRONT DRIVE SHAFT LH).
