Toyota QUICK DELIVERY — ASH RECEPTACLE

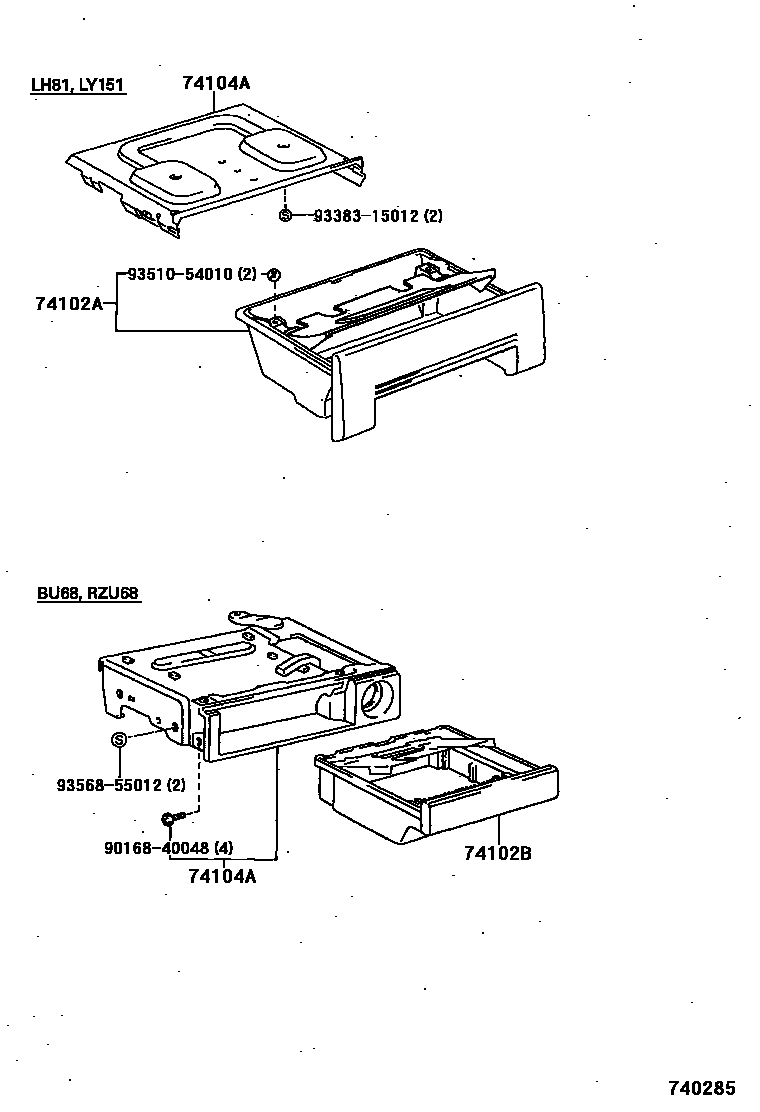

Parts diagram

74102ARECEPTACLE ASSY, FRONT ASH

main74102-95409-C0i199905

BLACK,TRIM1#

main74102-95409-C1i199505-199905

BLACK,TRIM1#

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-16040i199505

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-16070i199505

main74104-95406i199505

9016840048

main90168-40048

9338315012

main93383-15012

9351054010

main93510-54010

9356855012

main93568-55012

7 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota QUICK DELIVERY

This section contains 7 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota QUICK DELIVERY. Key components include: RECEPTACLE ASSY, FRONT ASH, BOX SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE.
