Toyota QUICK DELIVERY — ARMREST & VISOR

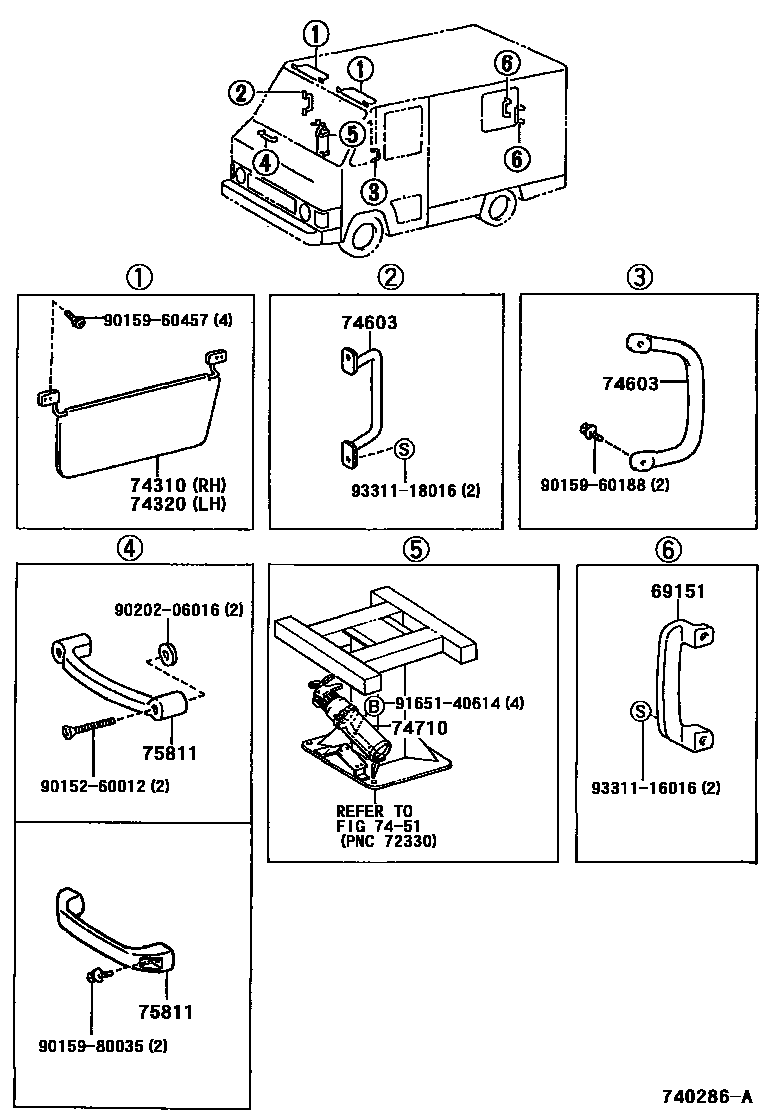

Parts diagram

69151HANDLE, BACK DOOR INSIDE PULL

main69151-95600×2i199505

74310VISOR ASSY, RH

main74310-36010-B0i199505-199908

LT.GRAY,TRIM1#

main74310-90D08-B0i199505

LT.GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-90F00-B0i199505

LT.GRAY,TRIM1#

7451ARMREST & VISOR

→ Go to FIG 74-51

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-90D01i199505

main74610-95260-B0i199505

LT.GRAY,TRIM1#

74710EXTINGUISHER ASSY

main74710-90D02i199505

75811GRIP, CAB SAFETY

main74691-25010i199505

main74691-90D00i199505

9015260012

main90152-60012

9015960188

main90159-60188

9015960457

main90159-60457

9015980035

main90159-80035

9020206016

main90202-06016

9165140614

main91651-40614

9331116016

main93311-16016

9331118016

main93311-18016

15 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota QUICK DELIVERY

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota QUICK DELIVERY. Key components include: HANDLE, BACK DOOR INSIDE PULL, VISOR ASSY, RH, VISOR ASSY, LH, ARMREST & VISOR, GRIP SUB-ASSY, ASSIST, FRONT.
