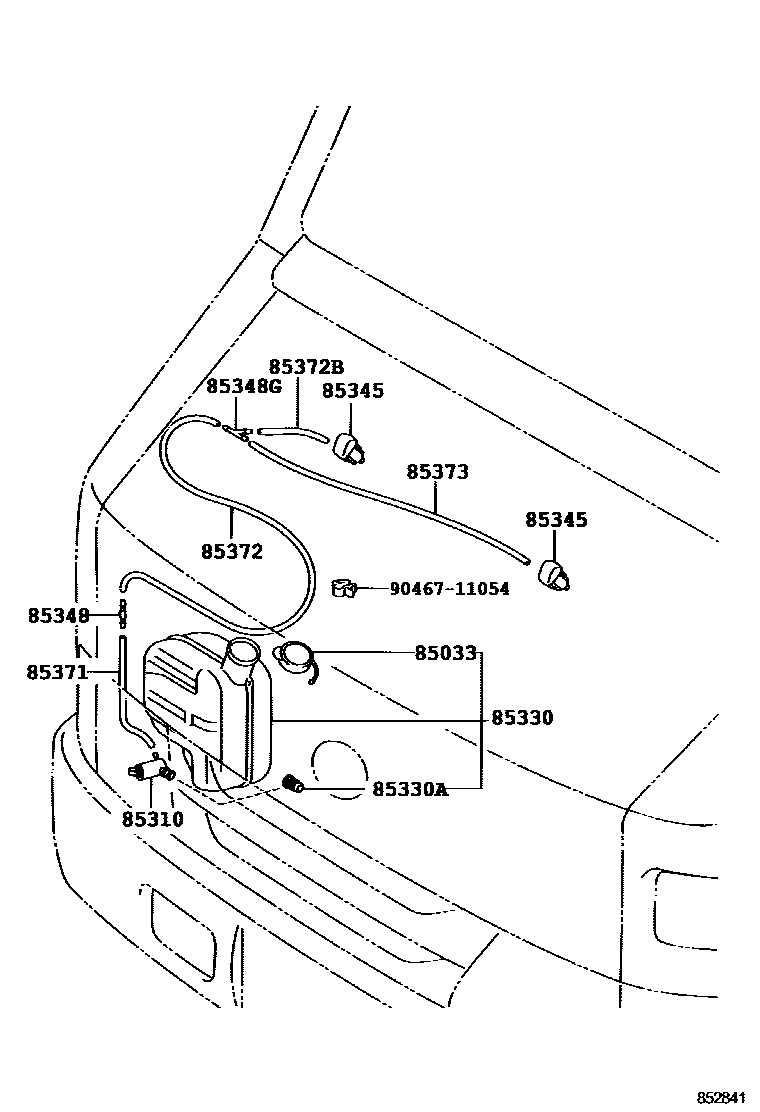

Toyota QUICK DELIVERY 200 — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120i201203

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-25050i201203

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040i201203

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201203

85345NOZZLE, WINDSHIELD WASHER

main85381-12050×2i201203

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201203

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i201203

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i201203

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013i201203

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013i201203

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013i201203

9046711054

main90467-11054

12 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota QUICK DELIVERY 200

This section contains 12 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota QUICK DELIVERY 200. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, NOZZLE, WINDSHIELD WASHER.
