Toyota QUICK DELIVERY 200 — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28160ARMATURE ASSY, STARTER
28199APROTECTOR, DUST STARTER
9003105033
main90031-05033
9017908204
main90179-08204
9017914007
main90179-14007
9165140612
main91651-40612

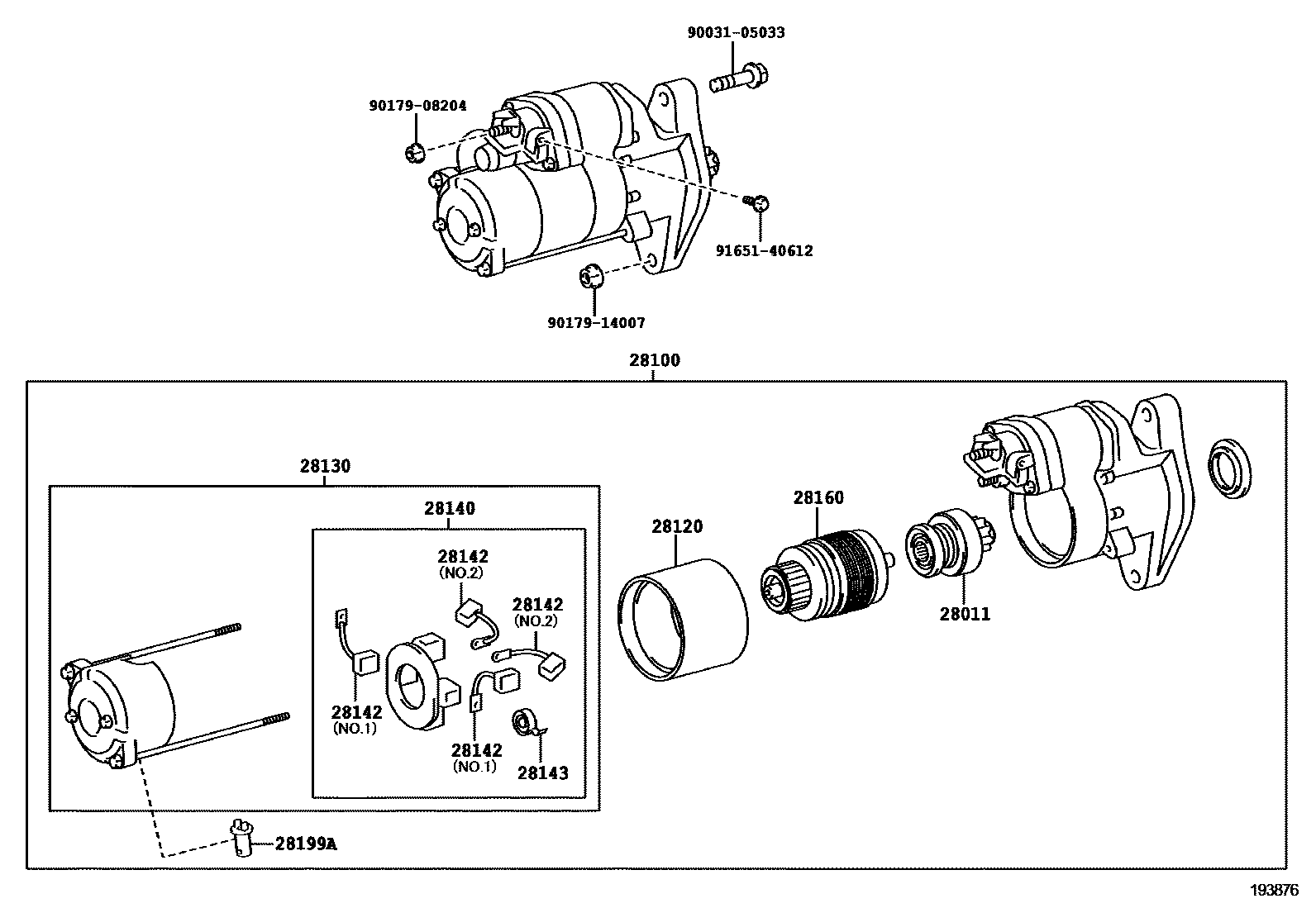

13 parts on this diagram · 1 diagram in section
STARTER for Toyota QUICK DELIVERY 200
This section contains 13 genuine Toyota parts for the STARTER system of the Toyota QUICK DELIVERY 200. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END, HOLDER ASSY, STARTER BRUSH.
