Toyota QUICK DELIVERY 200 — SIDE WINDOW

62111GLASS, FRONT SIDE WINDOW

main62111-37010i201203

main62112-37010i201203

62116AGLASS, REART SIDE WINDOW, FRONT LH

main62116-37020i201203

62118BGLASS, REART SIDE WINDOW, REAR LH

main62118-37020i201203

62145AFRAME SUB-ASSY, REAR SIDE WINDOW, OUTER LH

main62023-37010i201203

62151AWEATHERSTRIP, FRONT SIDE WINDOW

main62741-37010i201203

main62742-37010i201203

62221HGLASS, SIDE WINDOW, FRONT LH

main62711-37040i201203

62229APACKING, SIDE WINDOW, NO.2

main62229-95J00×2i201203

62249APLATE, SIDE WINDOW, LH

main62249-95700×2i201203

62254AWEATHERSTRIP, SIDE WINDOW, UPPER NO.2

main62153-37020i201203

62268AFILM, SIDE WINDOW FRAME

main62268-90A00×2i201203

62269AFILM, SIDE WINDOW FRAME, LH

main62269-90A00×2i201203

62279DSPACER, SIDE WINDOW FRAME, LH

main62279-26040×3i201203

62375DCLIP, SIDE WINDOW, NO.1

main62375-37010-B0i201203-201212

LT.GRAY,TRIM1#

62481CRUN, SIDE WINDOW, LH

main62481-37010i201203

62708GFRAME SUB-ASSY, SIDE REAR WINDOW, LH

main62706-37010i201203

62719BPACKING, SIDE REAR WINDOW, UPPER

main62719-26010i201203

62724DSTOP, SIDE FRONT WINDOW GLASS, LH

main62724-26010i201203

62729DPAD, REAR WINDOW CENTER SASH, LH

main62729-90K01i201203

62746DPACKING, QUARTER WINDOW, LH

main62746-26020×4i201203

62792CPACKING, SIDE WINDOW LOCK, LH

main62792-95A00×2i201203

62793CRETAINER, SIDE WINDOW LOCK, LH

main62793-95704×2i201203

62897TUBE, SIDE WINDOW GUARD

main62897-37010×4i201203

62910JLOCK ASSY, SIDE WINDOW, LH

main62910-95703×2i201203

9015930005

main90159-30005

9016440050

main90164-40050

9326016016

main93260-16016

9354083008

main93540-83008

27 parts on this diagram · 1 diagram in section

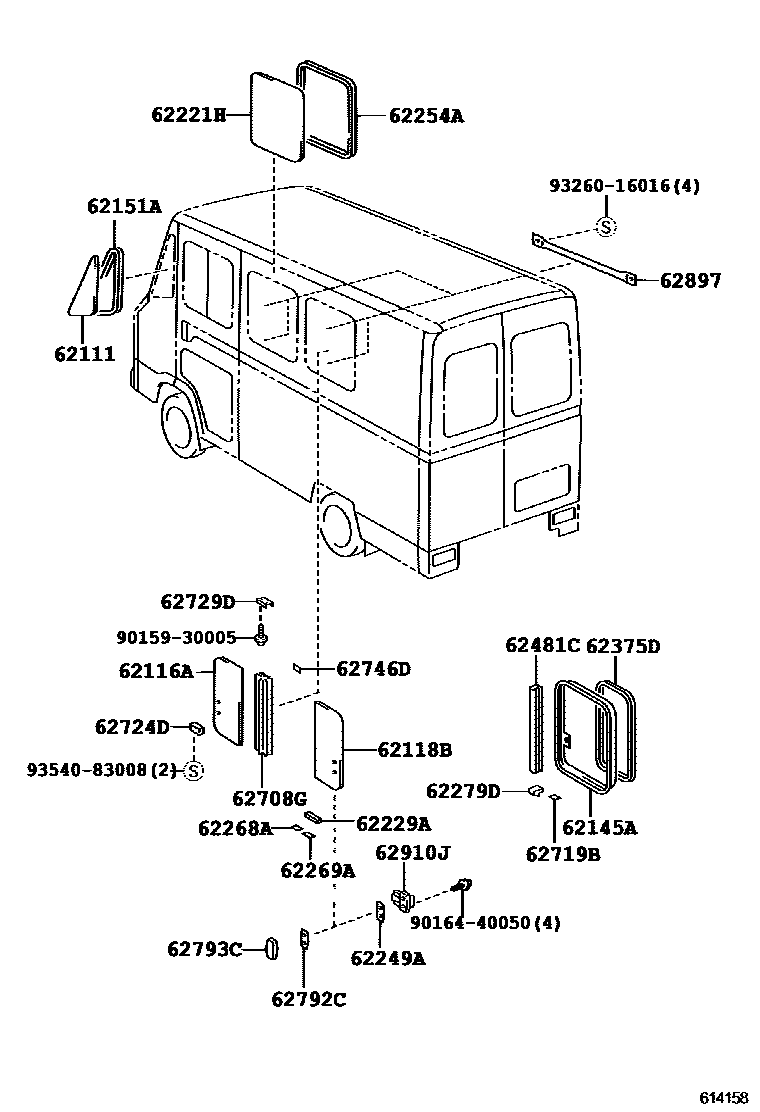

SIDE WINDOW for Toyota QUICK DELIVERY 200

This section contains 27 genuine Toyota parts for the SIDE WINDOW system of the Toyota QUICK DELIVERY 200. Key components include: GLASS, FRONT SIDE WINDOW, GLASS, REART SIDE WINDOW, FRONT LH, GLASS, REART SIDE WINDOW, REAR LH, FRAME SUB-ASSY, REAR SIDE WINDOW, OUTER LH, WEATHERSTRIP, FRONT SIDE WINDOW.
