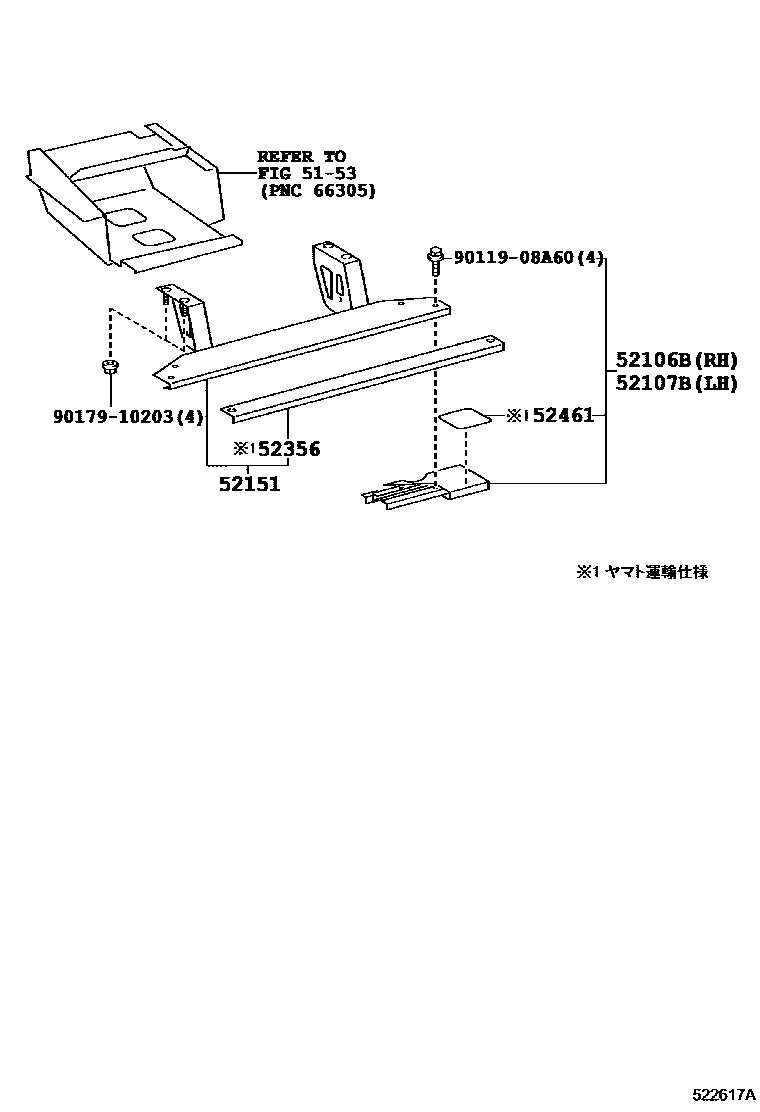

Toyota QUICK DELIVERY 200 — REAR BUMPER & BUMPER STAY

5153SPARE WHEEL CARRIER

→ Go to FIG 51-53

52106BBUMPER SUB-ASSY, REAR RH

main52106-37010supersedes 52106-37020i201203

52107BBUMPER SUB-ASSY, REAR LH

main52107-37010supersedes 52107-37020i201203

52151BUMPER ASSY, REAR

main52105-37080supersedes 52105-37100i201203

52356CUSHION, REAR BUMPER STEP

main52356-37050i201203-201212

52461PAD, REAR BUMPER, CENTER

main52461-37010×2i201203

9011908A60

main90119-08A60

9017910203

main90179-10203

8 parts on this diagram · 1 diagram in section

REAR BUMPER & BUMPER STAY for Toyota QUICK DELIVERY 200

This section contains 8 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota QUICK DELIVERY 200. Key components include: SPARE WHEEL CARRIER, BUMPER SUB-ASSY, REAR RH, BUMPER SUB-ASSY, REAR LH, BUMPER ASSY, REAR, CUSHION, REAR BUMPER STEP.
