Toyota QUICK DELIVERY 200 — METER
82823LCAP, TERMINAL
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83134COVER, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83878RESISTOR, COMBINATION METER
831611E020CASE, COMBINATION METER MIRROR, NO.1
main83161-1E020
8316120480CASE, COMBINATION METER MIRROR, NO.1
main83161-20480
8316120820CASE, COMBINATION METER MIRROR, NO.1
main83161-20820
8316126060CASE, COMBINATION METER MIRROR, NO.1
main83161-26060
9338315014
main93383-15014

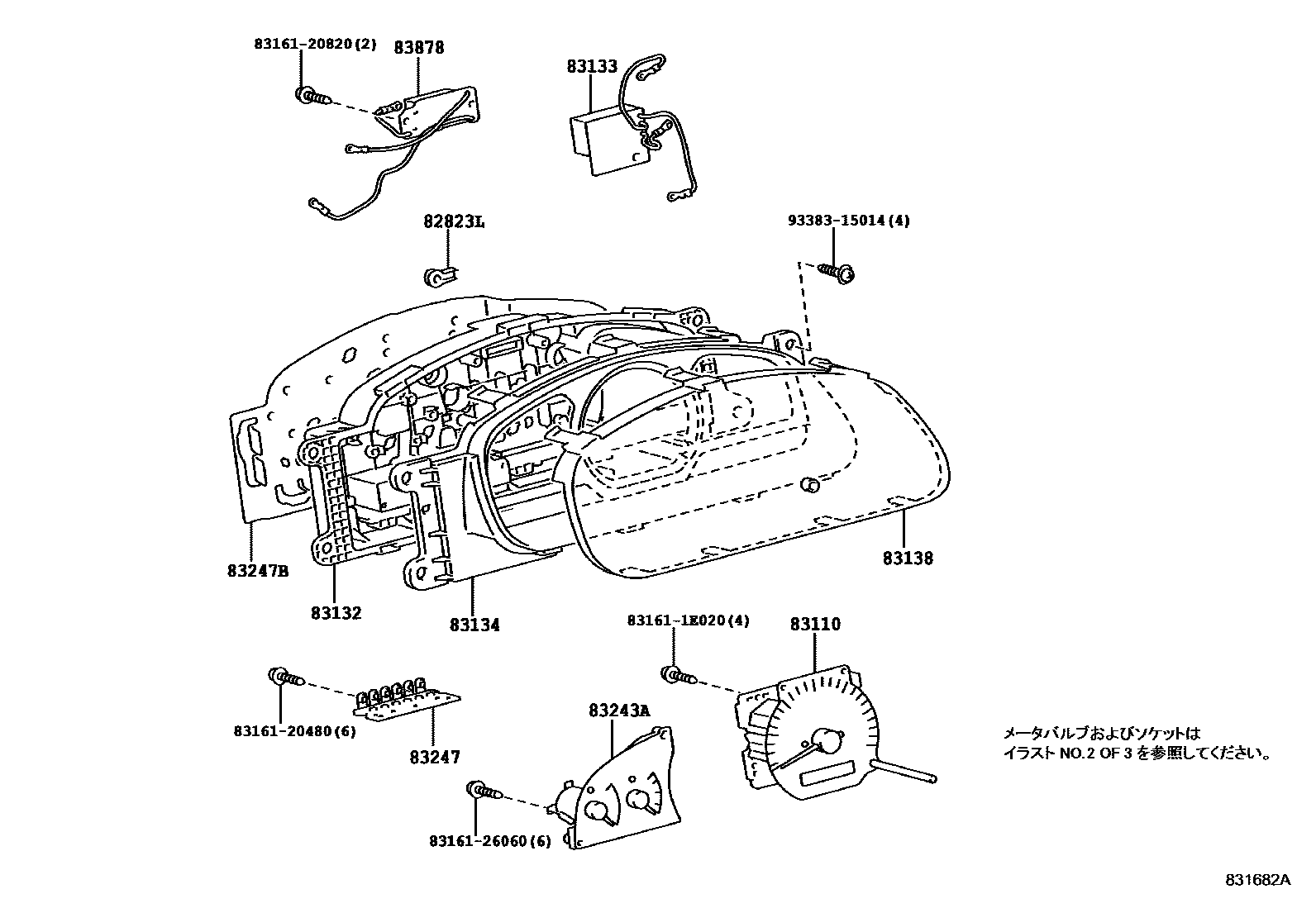

15 parts on this diagram · 3 diagrams in section
METER for Toyota QUICK DELIVERY 200
This section contains 19 genuine Toyota parts for the METER system of the Toyota QUICK DELIVERY 200. Key components include: CAP, TERMINAL, BULB, COMBINATION METER, NO.1, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
