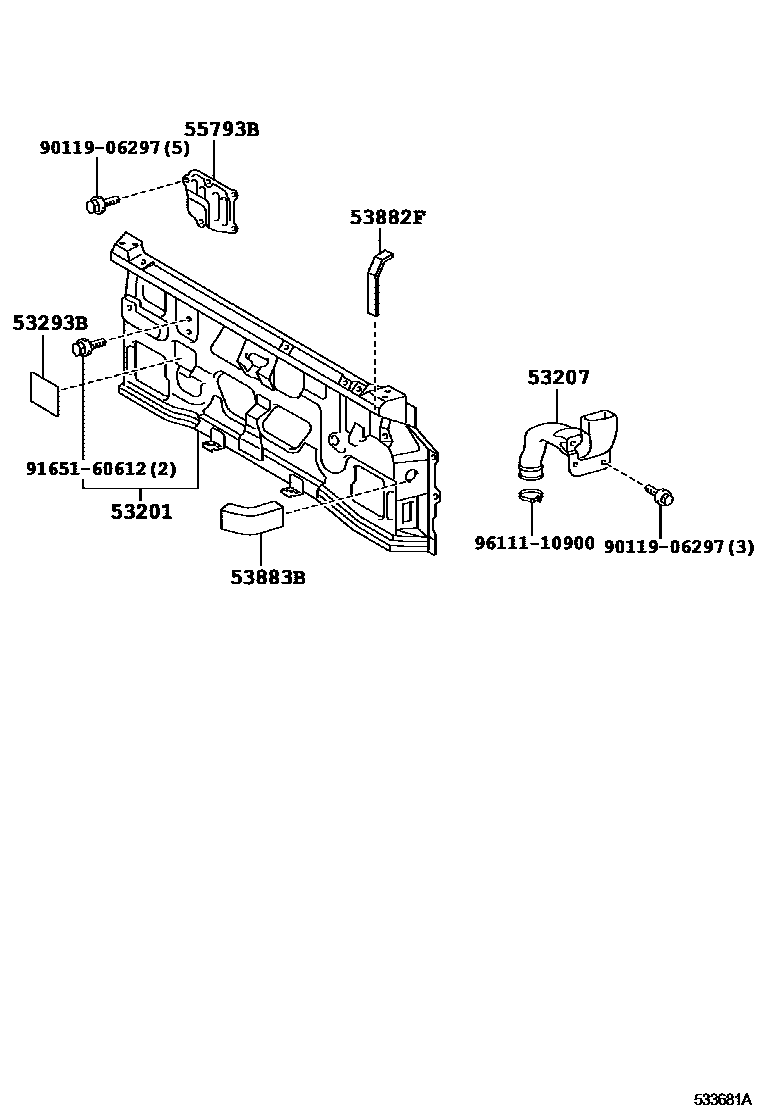

Toyota QUICK DELIVERY 200 — FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-37041i201203

53207PIPE SUB-ASSY, AIR INLET

main53207-37060i201203

53293BSEAL, RADIATOR SUPPORT SERVICE HOLE

main53293-37010i201203

53882FSEAL, FRONT FENDER

main53882-37020i201203-201212

53883BSEAL, FRONT FENDER, LH

main53883-37030i201203-201212

55793BCOVER, WIPER MOTOR SERVICE HOLE

main55793-37010i201203

9011906297

main90119-06297

9165160612

main91651-60612

9611110900

main96111-10900

9 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota QUICK DELIVERY 200

This section contains 9 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota QUICK DELIVERY 200. Key components include: SUPPORT SUB-ASSY, RADIATOR, PIPE SUB-ASSY, AIR INLET, SEAL, RADIATOR SUPPORT SERVICE HOLE, SEAL, FRONT FENDER, SEAL, FRONT FENDER, LH.
