Toyota QUICK DELIVERY 200 — ARMREST & VISOR

58119MCOVER, FRONT FLOOR SIDE, FRONT

main58119-37050-B0i201203-201212

BLUISH GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-37120-A0i201203-201212

IVORY,TRIM1#

74320VISOR ASSY, LH

main74320-37060-A0i201203-201212

IVORY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-95J00-B8×2i201203-201212

GRAY,TRIM1#

74617APLUG, ASSIST GRIP

main74617-95J00-B8×4i201203-201212

GRAY,TRIM1#

74710EXTINGUISHER ASSY

main74710-37013i201203

75811GRIP, CAB SAFETY

main74691-25010i201203

9015960188

main90159-60188

9015980035

main90159-80035

9165140614

main91651-40614

9331116016

main93311-16016

11 parts on this diagram · 1 diagram in section

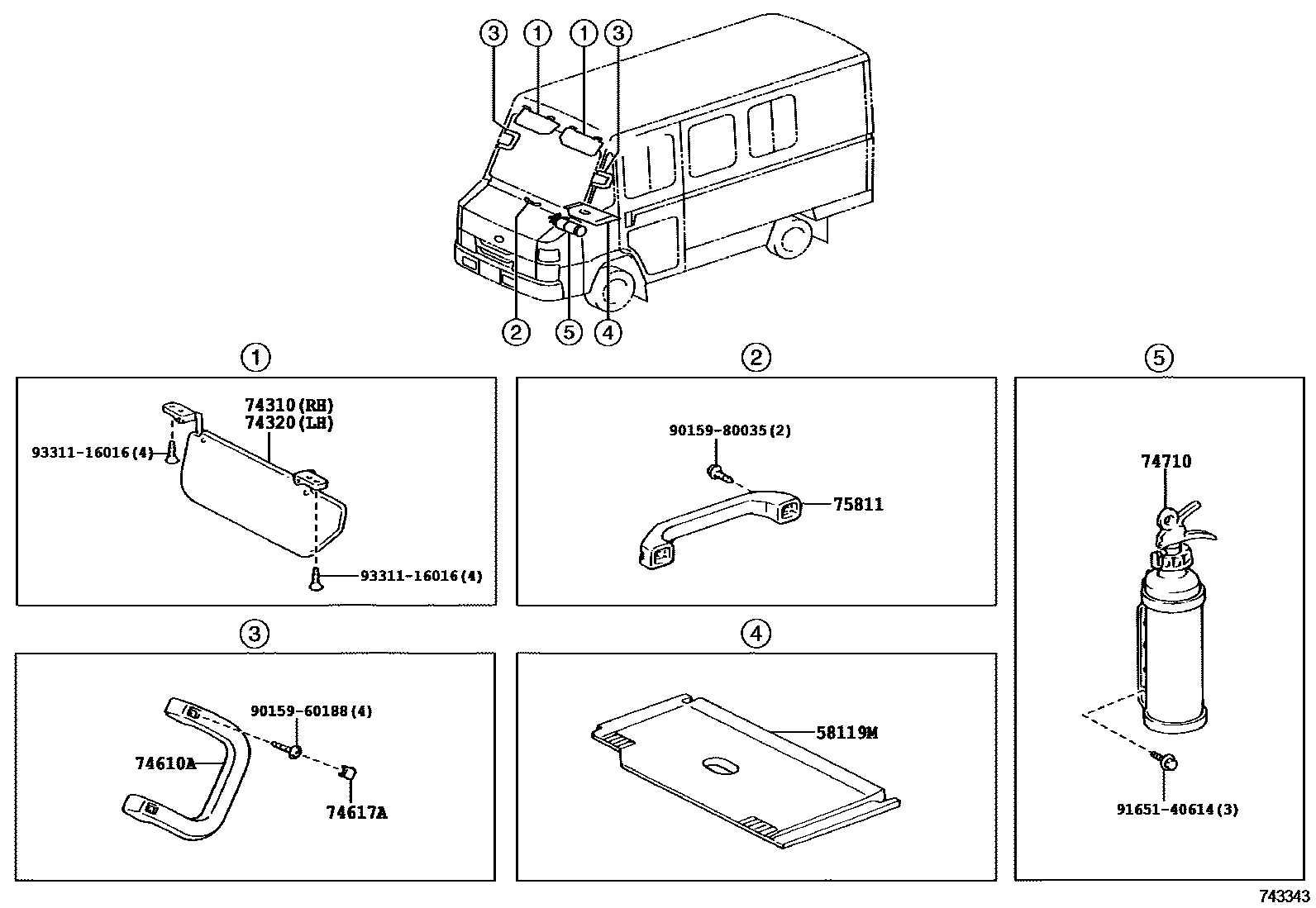

ARMREST & VISOR for Toyota QUICK DELIVERY 200

This section contains 11 genuine Toyota parts for the ARMREST & VISOR system of the Toyota QUICK DELIVERY 200. Key components include: COVER, FRONT FLOOR SIDE, FRONT, VISOR ASSY, RH, VISOR ASSY, LH, GRIP SUB-ASSY, ASSIST, PLUG, ASSIST GRIP.
