Toyota QUICK DELI/URBAN SUP — REAR BUMPER & BUMPER STAY

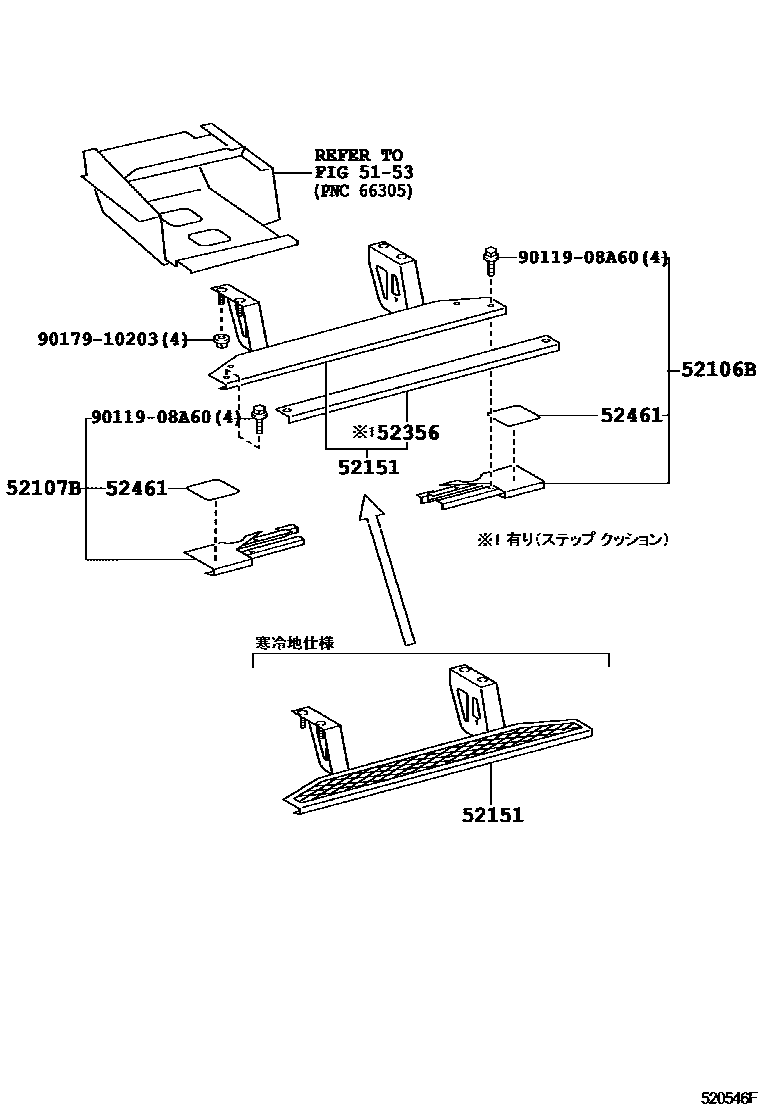

Parts diagram

5153SPARE WHEEL CARRIER

→ Go to FIG 51-53

52106BBUMPER SUB-ASSY, REAR RH

main52106-37010i200108-200407

main52106-37020i200610

52107BBUMPER SUB-ASSY, REAR LH

main52107-37010i199908-200306

main52107-37020i199908-200306

52151BUMPER ASSY, REAR

main52105-37080i200108-200407

main52105-37100i199908-200306

main52105-37110i199908-200407

52356CUSHION, REAR BUMPER STEP

main52356-37050i199908-200306

52461PAD, REAR BUMPER, CENTER

main52461-37010×2i199908-200306

9011908A60

main90119-08A60

9017910203

main90179-10203

8 parts on this diagram · 1 diagram in section

REAR BUMPER & BUMPER STAY for Toyota QUICK DELI/URBAN SUP

This section contains 8 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota QUICK DELI/URBAN SUP. Key components include: SPARE WHEEL CARRIER, BUMPER SUB-ASSY, REAR RH, BUMPER SUB-ASSY, REAR LH, BUMPER ASSY, REAR, CUSHION, REAR BUMPER STEP.

Toyota QUICK DELI/URBAN SUP REAR BUMPER & BUMPER STAY — Parts Diagram | ToyotaEPC
