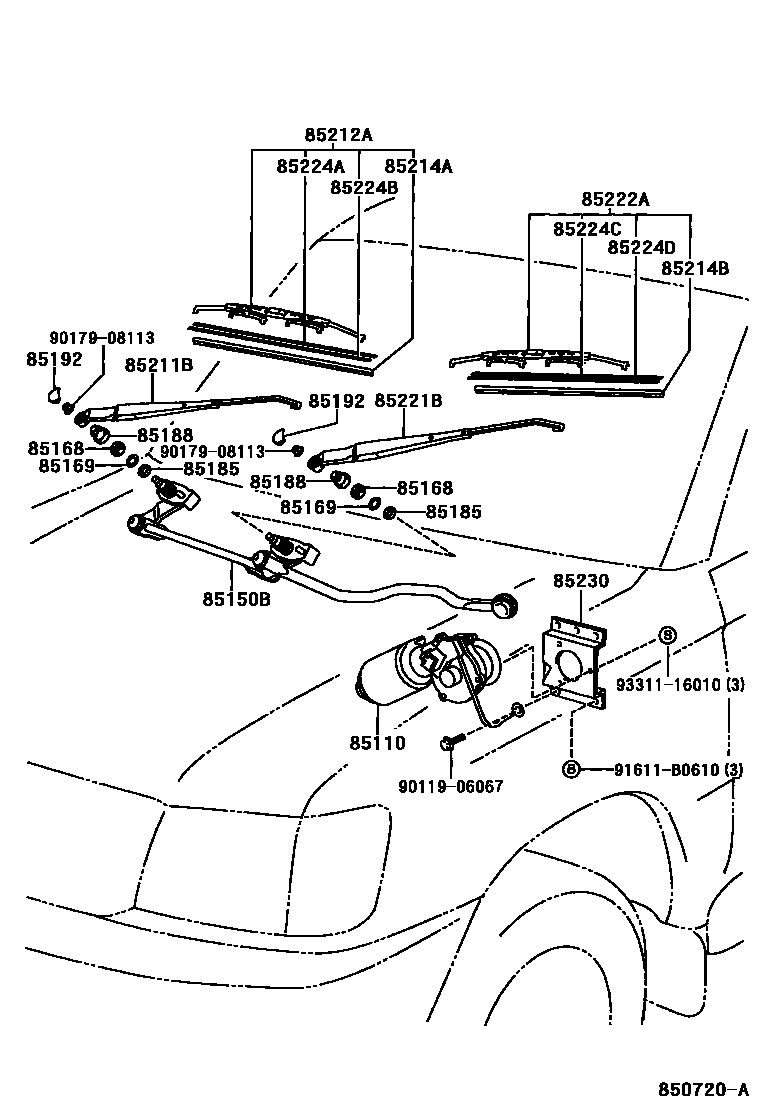

Toyota QUALIS — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85150BLINK ASSY, WIPER
85168NUT, WINDSHIELD WIPER LINK PIVOT
85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85185GASKET
85188CAP, WINDSHIELD WIPER PIVOT, NO.1
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85230BRACKET ASSY, WINDSHIELD WIPER
9011906067
main90119-06067
9017908113
main90179-08113
91611B0610
main91611-B0610
9331116010
main93311-16010
22 parts on this diagram · 1 diagram in section
