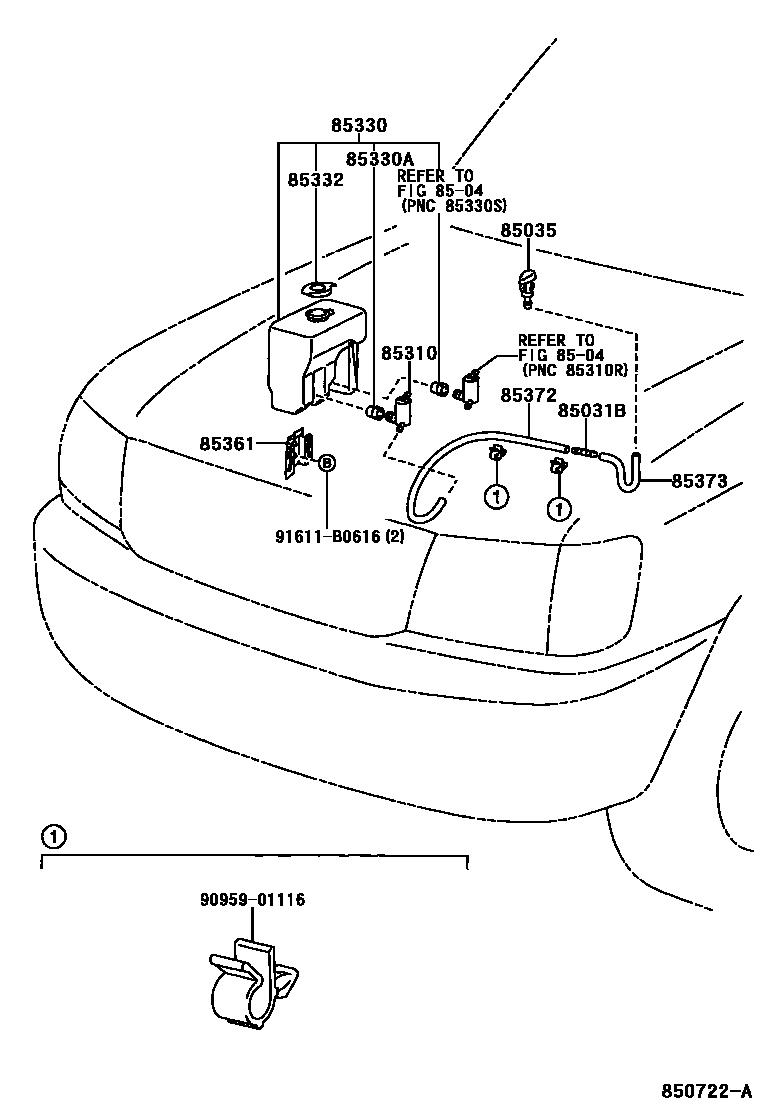

Toyota QUALIS — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-12250iLF50,RZF50199912

85035NOZZLE SUB-ASSY, WASHER

main85035-90P00iLF50,RZF50199912

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iLF50,RZF50199912

85330JAR ASSY, WINDSHIELD WASHER

main85315-0B090iLF50,RZF50..DLX,STD199912

main85315-0B100iLF50,RZF50..DLX,GL199912

W(REAR WIPER)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLF50,RZF50199912

85332CAP, WINDSHIELD WASHER JAR

main85316-0A020iLF50,RZF50199912

85361HOLDER, WINDSHIELD WASHER

main85361-0B020iLF50,RZF50199912

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iLF50199912-200110

L=1800(*H,L=1200)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iLF50,RZF50199912

L=1000(*H,L=60)

9095901116

main90959-01116

91611B0616

main91611-B0616

12 parts on this diagram · 1 diagram in section
