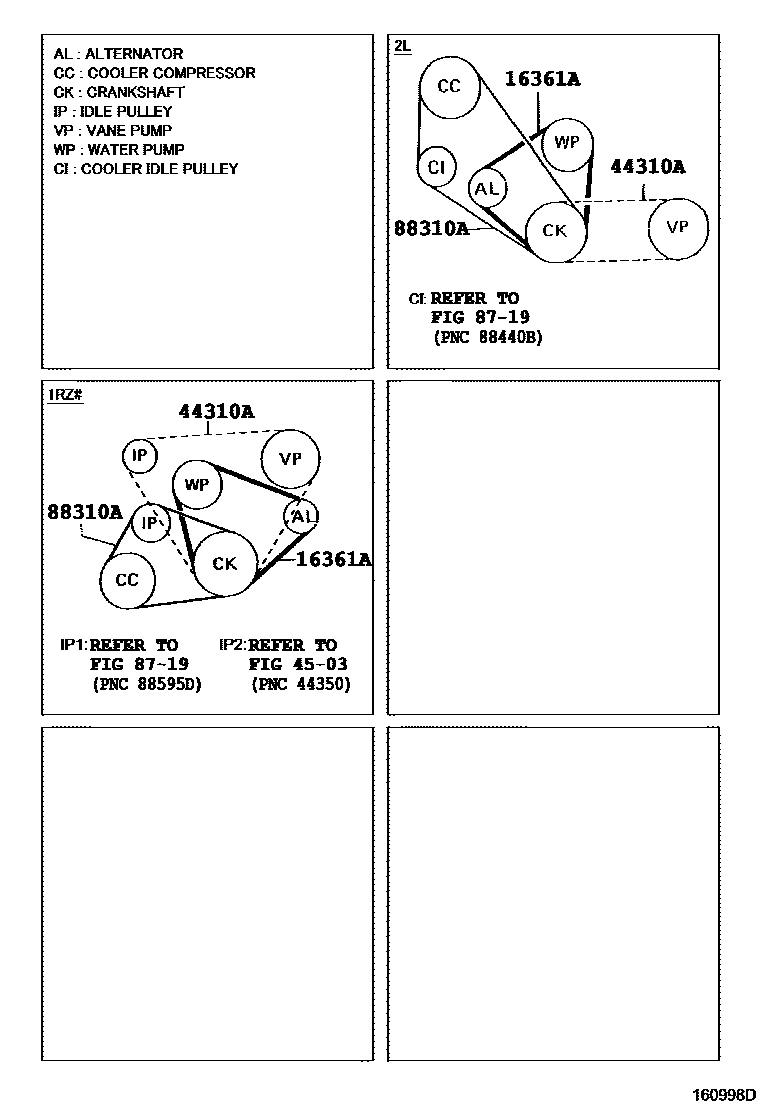

Toyota QUALIS — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-92016i199912-200403

(L)

main90916-02211i199912-200412

(J)

main90916-02336i200201-200412

44310ABELT, V(FOR VANE PUMP)

main90080-92021i199912-200310

main99332-01120i200201-200310

L=1120

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-92022i199912

main99364-30940i200201

L=940

5 parts on this diagram · 1 diagram in section

V-BELT for Toyota QUALIS

This section contains 5 genuine Toyota parts for the V-BELT system of the Toyota QUALIS. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), POWER STEERING TUBE, HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
