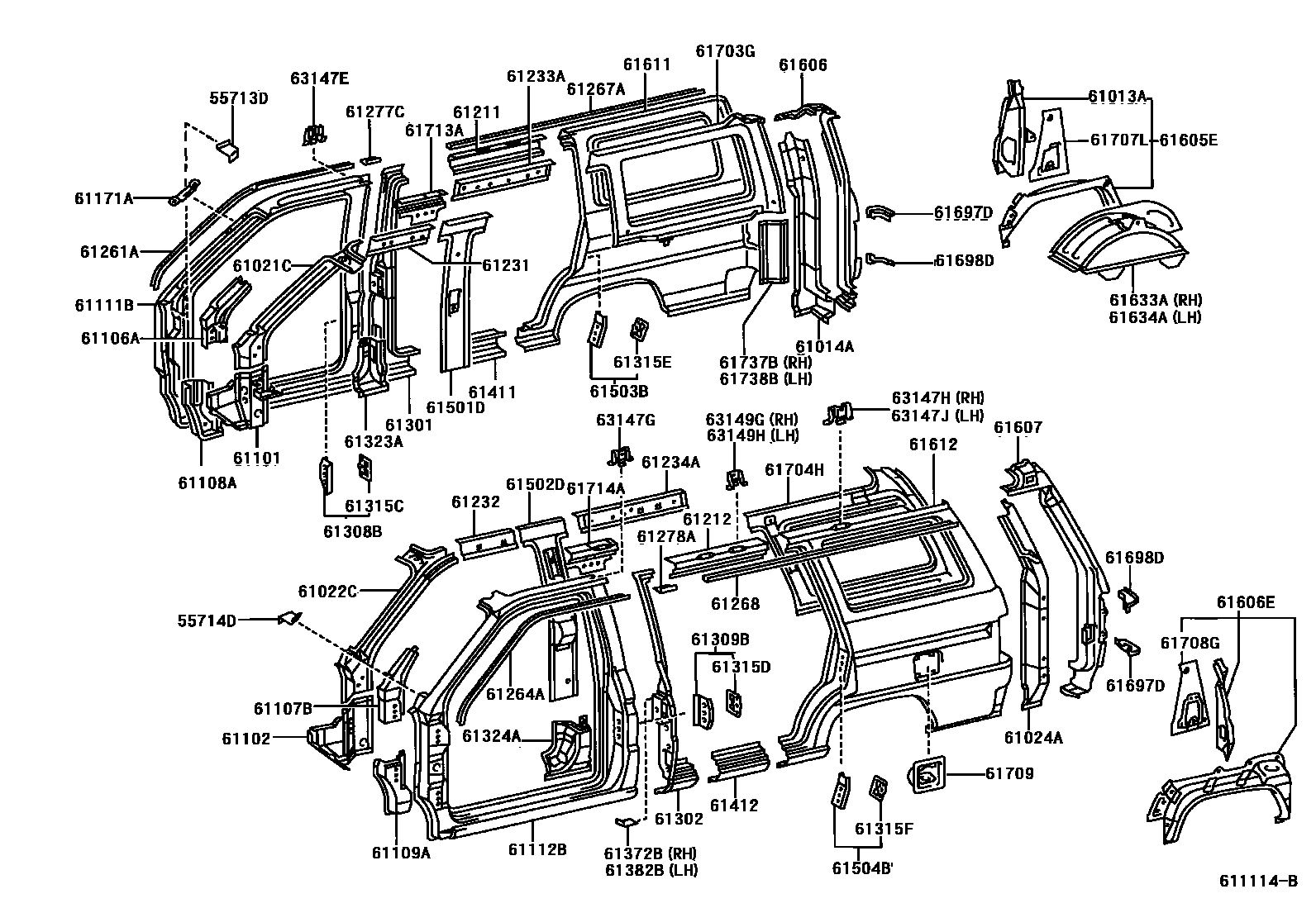

Toyota QUALIS — SIDE MEMBER
55713DREINFORCEMENT, COWL TOP SIDE, RH
55714DREINFORCEMENT, COWL TOP SIDE, LH
61013APILLAR SUB-ASSY, NO.3 RH
61014APILLAR SUB-ASSY, NO.4 RH
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61022CPILLAR SUB-ASSY, FRONT BODY, LH
61024APILLAR SUB-ASSY, NO.4 LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61111BPANEL, NO.1 SIDE, RH
61112BPANEL, NO.2 SIDE, RH
61171ABRACKET, ANTENNA POLE MOUNTING
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61277CJOINT, ROOF DRIP CHANNEL, RH
61278AJOINT, ROOF DRIP CHANNEL, LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61308BRETAINER SUB-ASSY, DOOR LOCK STRIKER, RH
61309BRETAINER SUB-ASSY, DOOR LOCK STRIKER, LH
61315CRETAINER, DOOR LOCK STRIKER, RH
61315DRETAINER, DOOR LOCK STRIKER, LH
61315ERETAINER, REAR DOOR LOCK STRIKER, RH
61315FRETAINER, REAR DOOR LOCK STRIKER, LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61372BREINFORCE, CENTER PILLAR UPPER HINGE, NO.2 RH
61382BREINFORCE, CENTER PILLAR UPPER HINGE, NO.2 LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61501DPILLAR SUB-ASSY, CAB REAR, RH
61502DPILLAR SUB-ASSY, CAB REAR, LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61605EPANEL, QUARTER, RH
61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61606EPANEL, QUARTER, LH
61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61611PANEL, QUARTER, RH
BASIC PACKAGE
61612PANEL, QUARTER, LH
BASIC PACKAGE
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(OPPOSING TYPE THIRD SEAT)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W(OPPOSING TYPE THIRD SEAT)
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
61704HPANEL SUB-ASSY, QUARTER, INNER LH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61708GPANEL SUB-ASSY, ROOF SIDE, INNER FRONT LH
61709BOX SUB-ASSY, FUEL INLET
61713AEXTENSION, ROOF SIDE, OUTER RH
61714AEXTENSION, ROOF SIDE, OUTER LH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
63147EBRACKET, ROOF PANEL REINFORCEMENT
63147GBRACKET, ROOF PANEL REINFORCEMENT
63147HBRACKET, ROOF PANEL REINFORCEMENT, NO.3
63147JBRACKET, ROOF PANEL REINFORCEMENT, NO.4
63149GBRACKET, ROOF PANEL REINFORCEMENT, REAR RH
63149HBRACKET, ROOF PANEL REINFORCEMENT, REAR LH
71 parts on this diagram · 3 diagrams in section
SIDE MEMBER for Toyota QUALIS
This section contains 114 genuine Toyota parts for the SIDE MEMBER system of the Toyota QUALIS. Key components include: REINFORCEMENT, COWL TOP SIDE, RH, REINFORCEMENT, COWL TOP SIDE, LH, PILLAR SUB-ASSY, NO.3 RH, PILLAR SUB-ASSY, NO.4 RH, PILLAR SUB-ASSY, FRONT BODY, RH.
