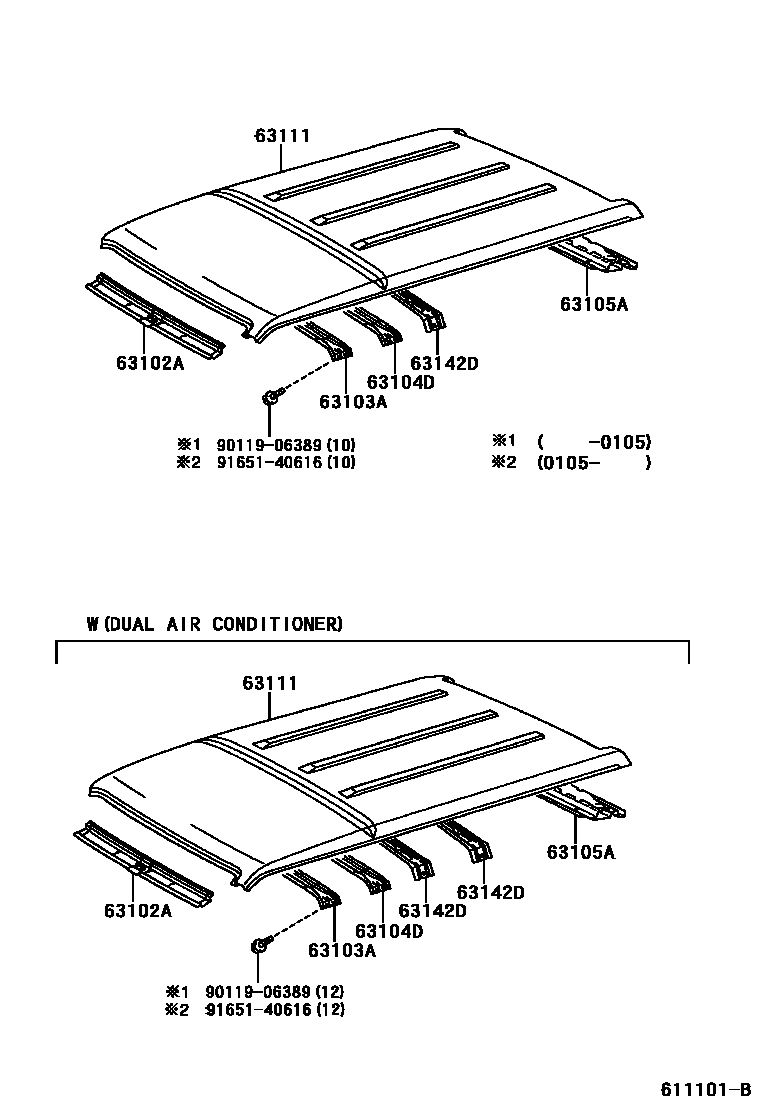

Toyota QUALIS — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0B020iLF50,RZF50199912

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0B010iLF50,RZF50..DLX,STD199912

main63103-0B020iLF50,RZF50199912-200209

W(MAP LAMP)

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-0B030iLF50,RZF50199912

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0B010iLF50,RZF50199912

63111PANEL, ROOF

main63111-0B120iLF50,RZF50199912

63142DREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63142-0B020×2iLF50,RZF50199912-200209

W(DUAL AIR CONDITIONER)

9011906389

main90119-06389

9165140616

main91651-40616

8 parts on this diagram · 1 diagram in section
