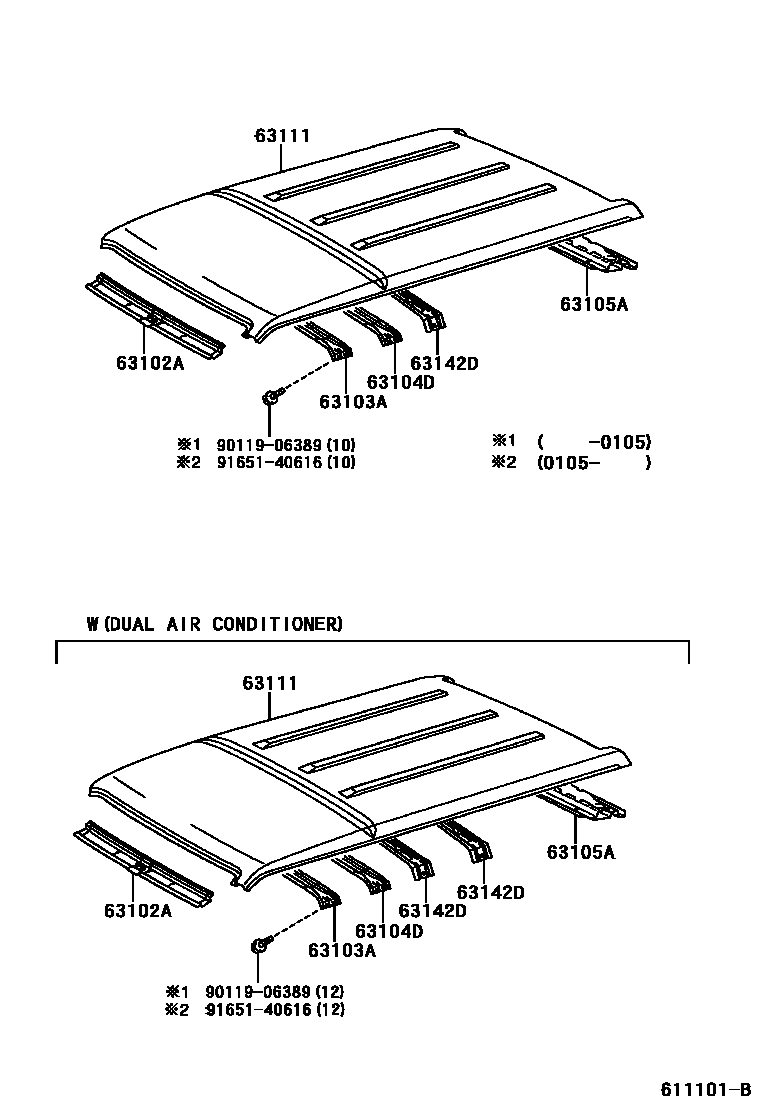

Toyota QUALIS — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0B020i199912

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0B010i199912

main63103-0B020i199912-200209

W(MAP LAMP)

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-0B030i199912

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0B010i199912

63111PANEL, ROOF

main63111-0B120i199912

63142DREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63142-0B020i199912-200209

W(DUAL AIR CONDITIONER)

main63142-0B020i199912

9011906389

main90119-06389

9165140616

main91651-40616

8 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota QUALIS

This section contains 8 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota QUALIS. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF.
