Toyota QUALIS — PARTIAL ENGINE ASSEMBLY

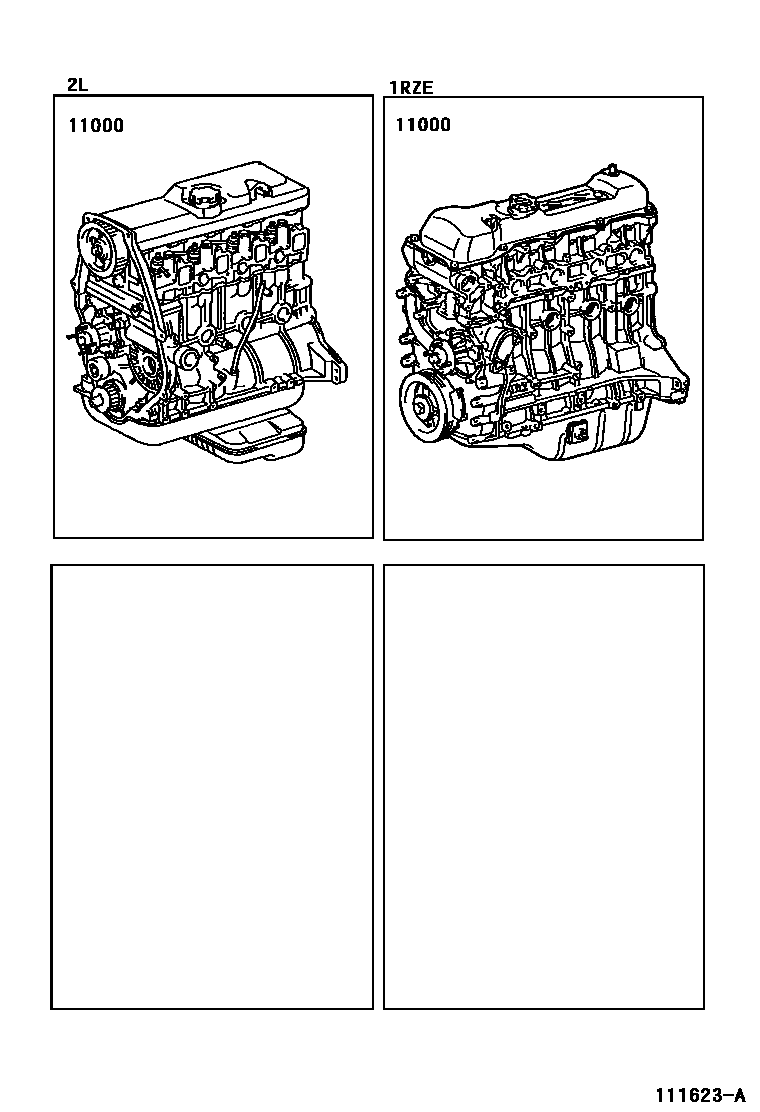

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-05040i199912-200403

main19000-05050i200201-200209

W(EGR)

main19000-5B750i200403-200404

main19000-5B760i200403-200404

W(EGR)

main19000-5BA90i200404-200412

main19000-5BB00i200404-200412

W(EGR)

main19000-75680i200201-200403

main19000-75D50i200403-200412

1 parts on this diagram · 1 diagram in section
