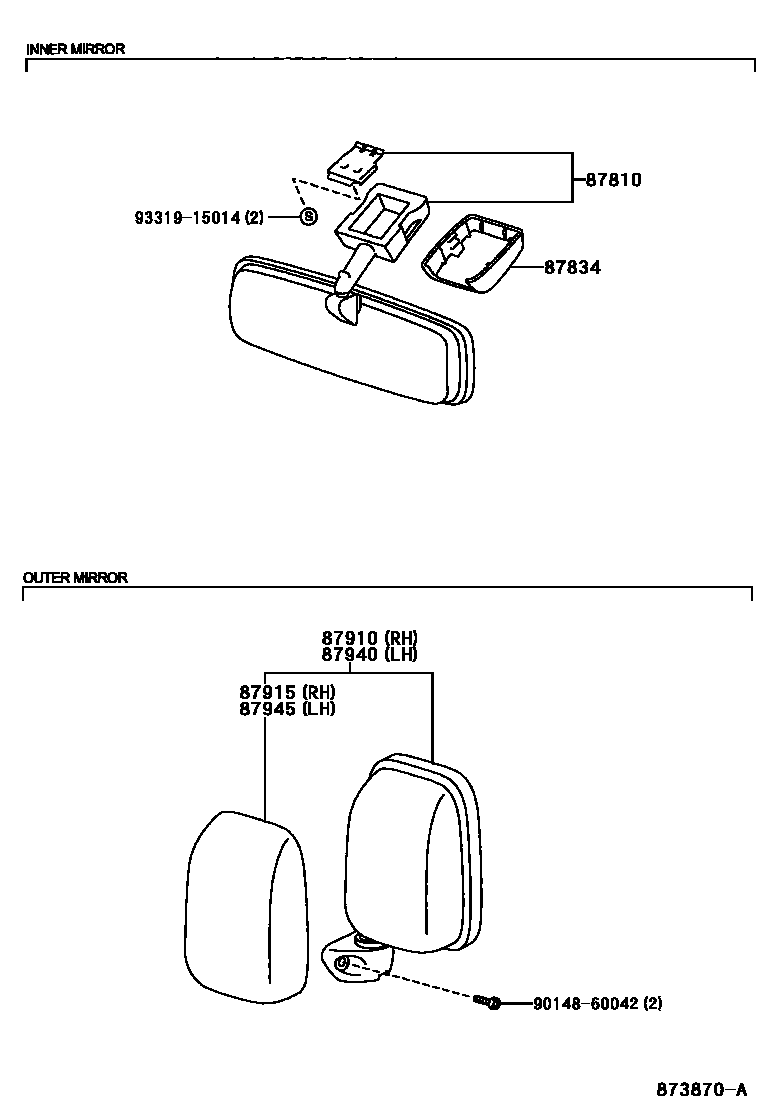

Toyota QUALIS — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0B010-B0iLF50,RZF50..DLX,GL200112-200412

BLUISH GRAY,TRIM1#

main87810-0B030-B0iLF50..DLX199912-200112

BLUISH GRAY,TRIM1#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-0B020-B1iLF50,RZF50199912-200412

LT. BLUISH GRAY,TRIM1#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0B051iLF50199912-200209

main87910-0B070iRZF50200201-200209

87915COVER, OUTER MIRROR, RH

main87915-0B010×2iLF50,RZF50..DLX,GL199912-200209

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0B051iLF50,RZF50..DLX,STD200209

main87940-0B070iRZF50200201-200209

87945COVER, OUTER MIRROR, LH

main87945-0B010iLF50,RZF50..GL200209

9014860042

main90148-60042

9331915014

main93319-15014

8 parts on this diagram · 1 diagram in section
