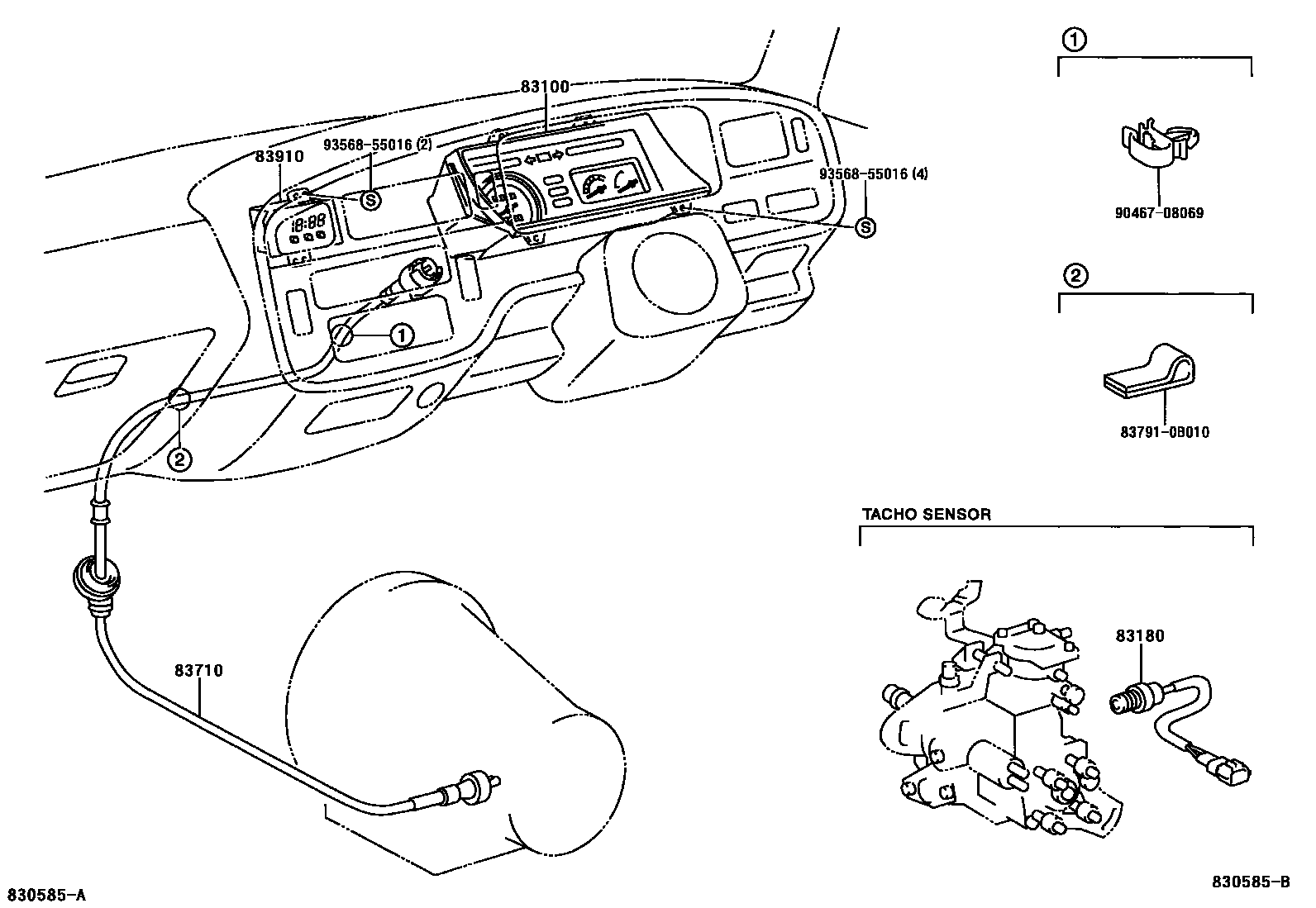

Toyota QUALIS — METER

0001 1 0002 1

83100METER ASSY, COMBINATION

main83800-0B140iLF50199912-200209

main83800-0B141iLF50..DLX,STD200209-200412

main83800-0B250iLF50..STD199912-200209

BASIC PACKAGE

main83800-0B251iLF50..STD200209-200412

BASIC PACKAGE

main83800-0B400iRZF50200201-200209

main83800-0B720iRZF50..GL200209-200412

main83800-0B730iLF50..GL200209-200412

main83800-0B740iRZF50..DLX,STD200304-200412

83180DETECTOR ASSY, REVOLUTION

main83180-35020iLF50199912-200209

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-0B070iLF50199912

main83710-0B090iRZF50200201

83910CLOCK ASSY

main83910-38040iLF50,RZF50..DLX,GL199912

837910B010

main83791-0B010

9046708069

main90467-08069

9356855016

main93568-55016

7 parts on this diagram · 2 diagrams in section
