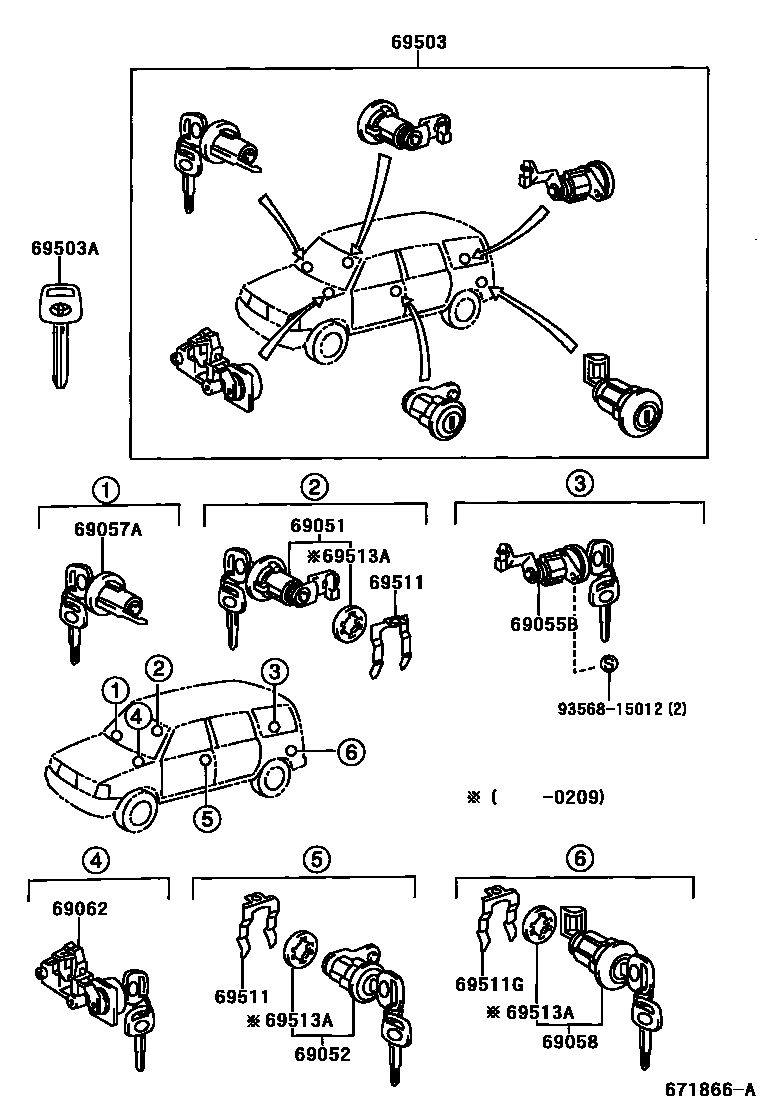

Toyota QUALIS — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0B030i200209

main69051-38040i199912-200209

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0B040i200209

main69052-38050i199912-200209

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-0B020i200209

main69055-38040i199912-200209

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0B020i200209

main69057-20420i199912-200209

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-0B030i200209

main69058-38070i199912-200209

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0B020i200209

main69056-38040i199912-200209

69503CYLINDER SET, LOCK

main69005-0B080i200209

main69005-0B090i200209

main69005-38060i199912-200209

69503AKEY, BLANK

main90998-00001×2i200209

MASTER KEY,W(*68)

main90999-00185i199912-200209

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400×2i199912

69511GRETAINER, FUEL FILLER OPENING CYLINDER

main69511-32010i199912-200209

69513APAD, DOOR CYLINDER

main69513-32010×3i199912-200209

9356815012

main93568-15012

12 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota QUALIS

This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota QUALIS. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, FUEL FILLER LID.
