Toyota QUALIS — INSTRUMENT PANEL & GLOVE COMPARTMENT

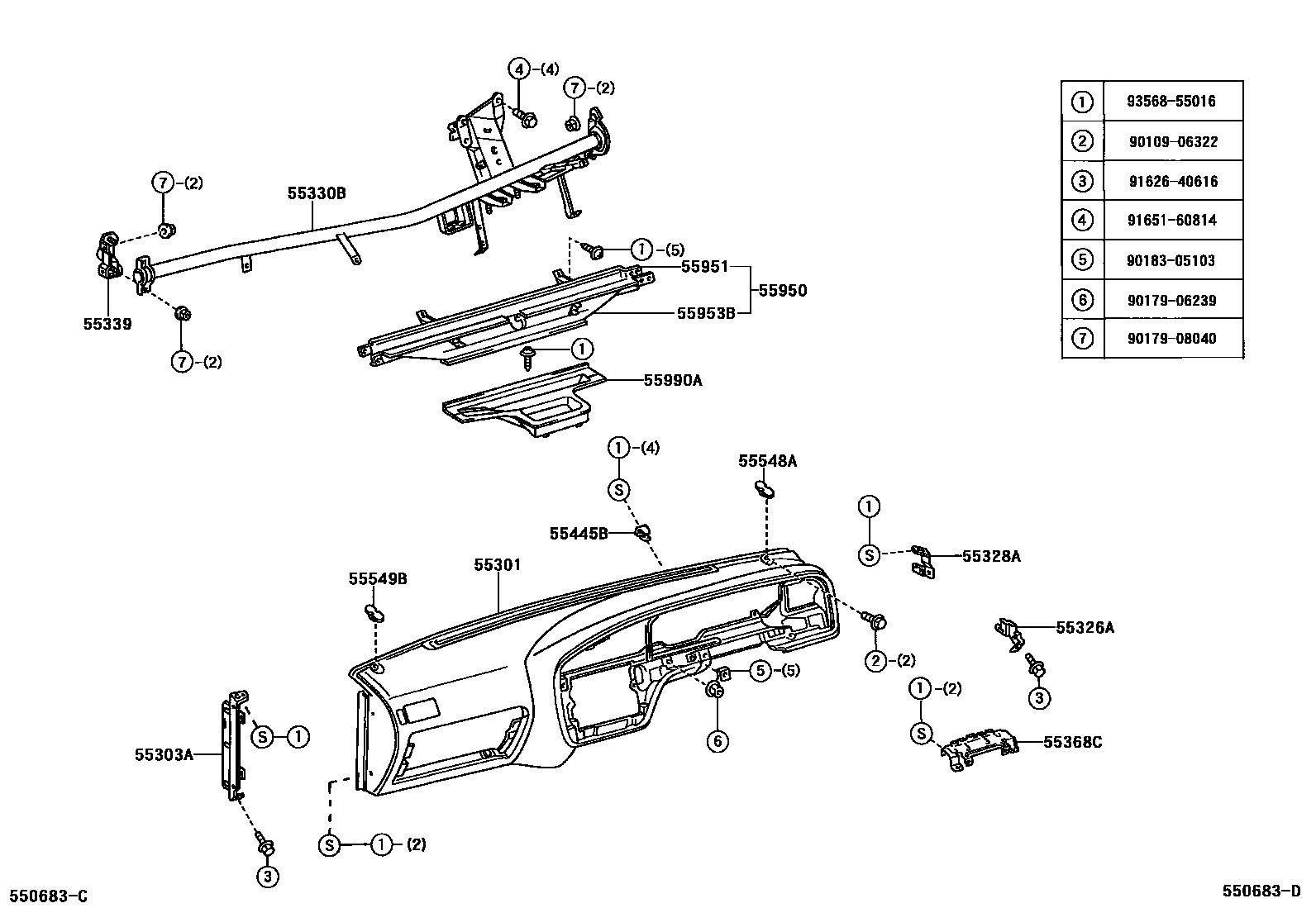

Parts diagram

55301PANEL SUB-ASSY, INSTRUMENT

main55311-0B030-B0i199912-200412

BLUISH GRAY,TRIM1#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-38090i199912

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-38040i199912

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-38030i199912

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0B050i199912-200209

main55330-0B070i199912-200310

W(EGR)

main55330-0B100i200201-200310

main55330-0B110i200310

main55330-0B120i200310

W(EGR)

main55330-0B130i200310

55339EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.2

main55339-38010i199912

55368CBRACKET, METER MOUNTING

main55368-0B030i200112

main55368-38030i199912-200112

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-38020×4i199912

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-0B040-B0i199912-200412

BLUISH GRAY,TRIM1#

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-0B040-B0i199912-200412

BLUISH GRAY,TRIM1#

55950NOZZLE ASSY, DEFROSTER

main55950-0B020i199912

55951NOZZLE, DEFROSTER, FRONT

main55951-0B020i199912

55953BNOZZLE, DEFROSTER, REAR

main55953-0B010i199912

55990ANOZZLE ASSY, DEFROSTER, LOWER

main55990-0B020i199912

9010906322

main90109-06322

9017906239

main90179-06239

9017908040

main90179-08040

9018305103

main90183-05103

9162640616

main91626-40616

9165160814

main91651-60814

9356855016

main93568-55016

21 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota QUALIS

This section contains 49 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota QUALIS. Key components include: PANEL SUB-ASSY, INSTRUMENT, STAY SUB-ASSY, INSTRUMENT PANEL, PANEL, INSTRUMENT, LOWER CENTER, PANEL, INSTRUMENT SIDE, RH, STAY, INSTRUMENT PANEL, NO.1.
