Toyota QUALISHOOD LOCK & HINGE

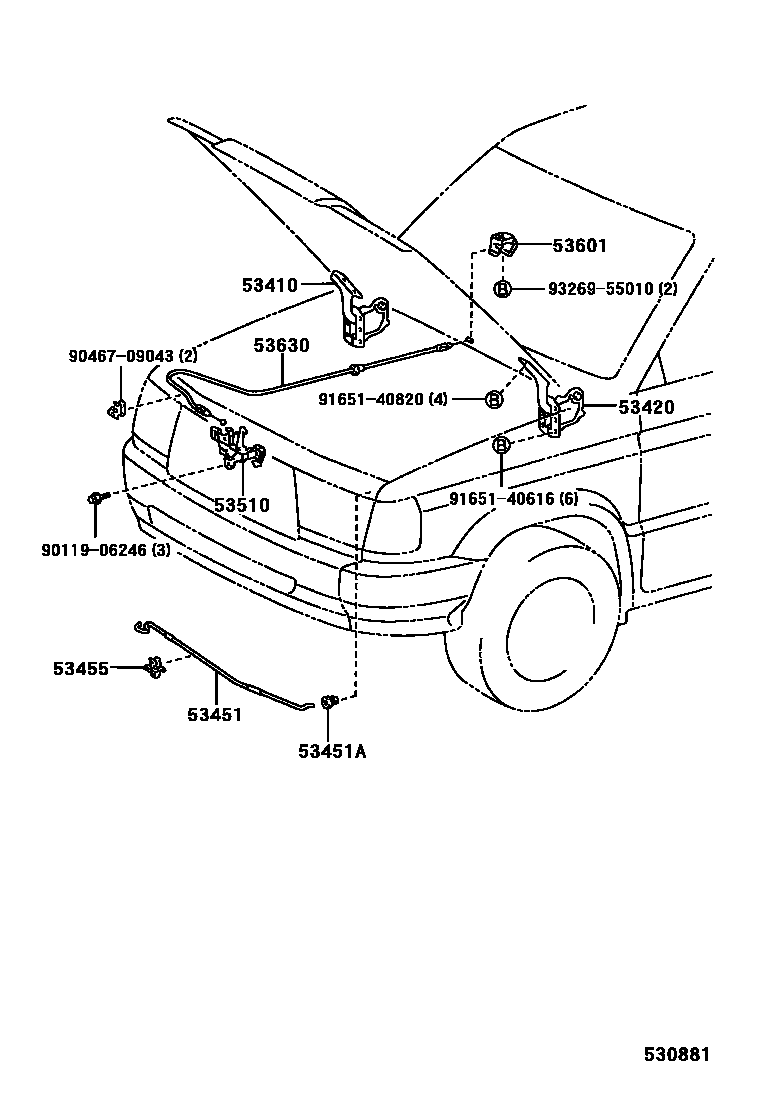

Parts diagram
53410HINGE ASSY, HOOD, RH
main53410-90P00i199912
53420HINGE ASSY, HOOD, LH
main53420-90P00i199912
53451ROD, HOOD SUPPORT
main53451-0B040i199912
53451AGROMMET(FOR HOOD SUPPORT ROD)
main90480-15031i199912
53455CLAMP, HOOD SUPPORT ROD
main53455-44010i199912
53510LOCK ASSY, HOOD
main53510-0B030i199912
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-0B020-B0i199912-200412
BLUISH GRAY,TRIM1#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-0B040i199912
9011906246
9046709043
9165140616
9165140820
9326955010

13 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota QUALIS

This section contains 13 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota QUALIS. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), CLAMP, HOOD SUPPORT ROD.
