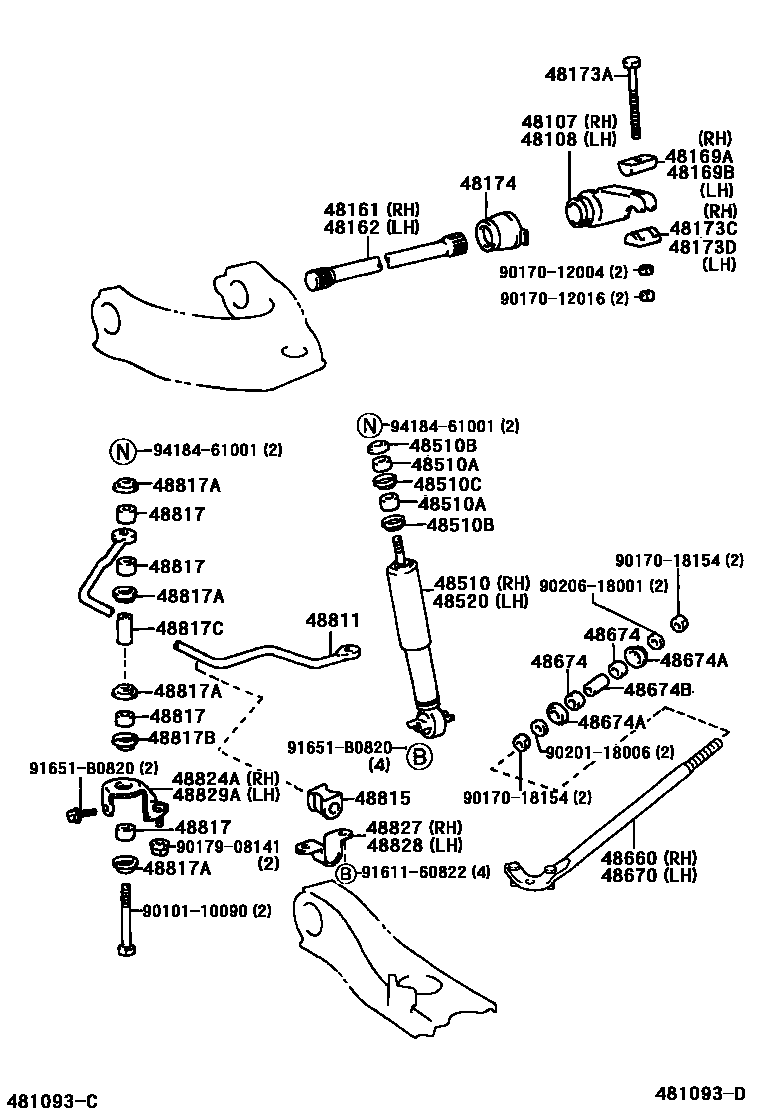

Toyota QUALIS — FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169ASWIVEL, ANCHOR ARM, RH
48169BSWIVEL, ANCHOR ARM, LH
48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
48173CSEAT, ANCHOR ARM ADJUSTER, RH
48173DSEAT, ANCHOR ARM ADJUSTER, LH
48174COVER, TORSION BAR DUST
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48500-0B050
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48500-0B050
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9010110090
main90101-10090
9017012004
main90170-12004
9017012016
main90170-12016
9017018154
main90170-18154
9017908141
main90179-08141
9020118006
main90201-18006
9020618001
main90206-18001
9161160822
main91611-60822
91651B0820
main91651-B0820
9418461001
main94184-61001
40 parts on this diagram · 1 diagram in section
