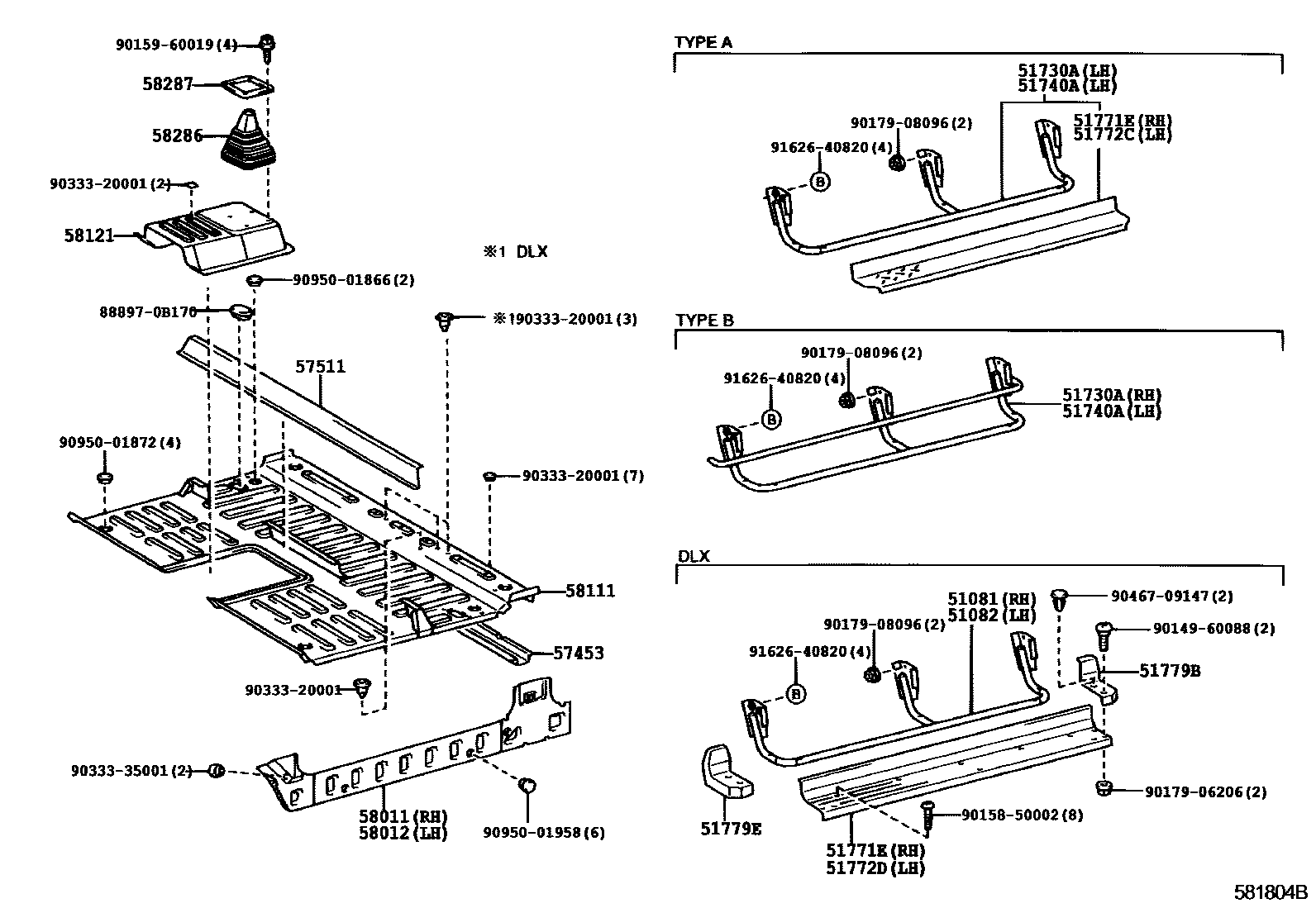

Toyota QUALIS — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1SIDE STEP

51081STAY SUB-ASSY, SIDE STEP, NO.1 RH

main51081-0B010iLF50..DLX199912-200110

main51081-0B030iLF50,RZF50..DLX,GL200110-200209

51082STAY SUB-ASSY, SIDE STEP, NO.1 LH

main51082-0B010iLF50..DLX199912-200110

main51082-0B030iLF50,RZF50..DLX,GL200110-200209

51730ASTEP ASSY, REAR FLOOR, RH

main51730-0B020iLF50..STD199912-200110

TYPE A:REFER TO ILLUSTRATION

main51730-0B050iLF50..STD199912-200110

TYPE B:REFER TO ILLUSTRATION

main51730-0B080iLF50,RZF50..STD200110

TYPE A:REFER TO ILLUSTRATION

main51730-0B090iLF50..STD200110

TYPE B:REFER TO ILLUSTRATION

main51730-0B120iRZF50200201-200209

51740ASTEP ASSY, REAR FLOOR, LH

main51740-0B020iLF50..STD199912-200110

TYPE A:REFER TO ILLUSTRATION

main51740-0B050iLF50..STD199912-200110

TYPE B:REFER TO ILLUSTRATION

main51740-0B070iLF50,RZF50..STD200110

TYPE A:REFER TO ILLUSTRATION

main51740-0B080iLF50..STD200110

TYPE B:REFER TO ILLUSTRATION

main51740-0B110iRZF50200201-200209

51771EPLATE, STEP, RH

main51771-0B010iLF50,RZF50..DLX,GL199912-200209

main51771-0B020iLF50,RZF50..STD199912

main51771-0B050iLF50,RZF50..DLX,GL200209

51772CPLATE, STEP LH

main51771-0B020iLF50,RZF50..STD199912

51772DPLATE, STEP, LH

main51772-0B010iLF50,RZF50..DLX,GL199912-200209

main51772-0B040iLF50,RZF50..DLX,GL200209

51779BCOVER, SIDE DOOR STEP PLATE, NO.2

main51759-0B010iLF50,RZF50..DLX,GL199912-200209

LH

main51779-0B010iLF50,RZF50..DLX,GL199912-200209

RH

51779ECOVER, SIDE DOOR STEP PLATE, NO.1

main51759-0B010iLF50,RZF50..DLX,GL199912-200209

RH

main51779-0B010iLF50,RZF50..DLX,GL199912-200209

LH

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-0B050iLF50,RZF50199912

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-0B020iLF50,RZF50199912

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-0B050iLF50,RZF50199912

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-0B050iLF50,RZF50199912

58111PAN, FRONT FLOOR

main58101-0B901iLF50199912-200109

58121PANEL, FLOOR TRANSMISSION COVER

main58121-0B010iLF50199912

main58121-0B020iRZF50200201

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-0B050-B0iLF50,RZF50..DLX,STD199912-200412

BLUISH GRAY,TRIM1#

main58286-0B070iLF50,RZF50..GL199912-200412

W(CONSOLE BOX)

58287RETAINER, SHIFT LEVER BOOT

main58287-0B050iLF50,RZF50199912

888970B170VALVE, COOLER MAGNET

main88897-0B170

9014960088

main90149-60088

9015850002

main90158-50002

9015960019

main90159-60019

9017906206

main90179-06206

9017908096

main90179-08096

9033320001

main90333-20001

9033335001

main90333-35001

9046709147

main90467-09147

9095001866

main90950-01866

9095001872

main90950-01872

9095001958

main90950-01958

9162640820

main91626-40820

30 parts on this diagram · 3 diagrams in section
