Toyota QUALIS — FRONT DOOR PANEL & GLASS

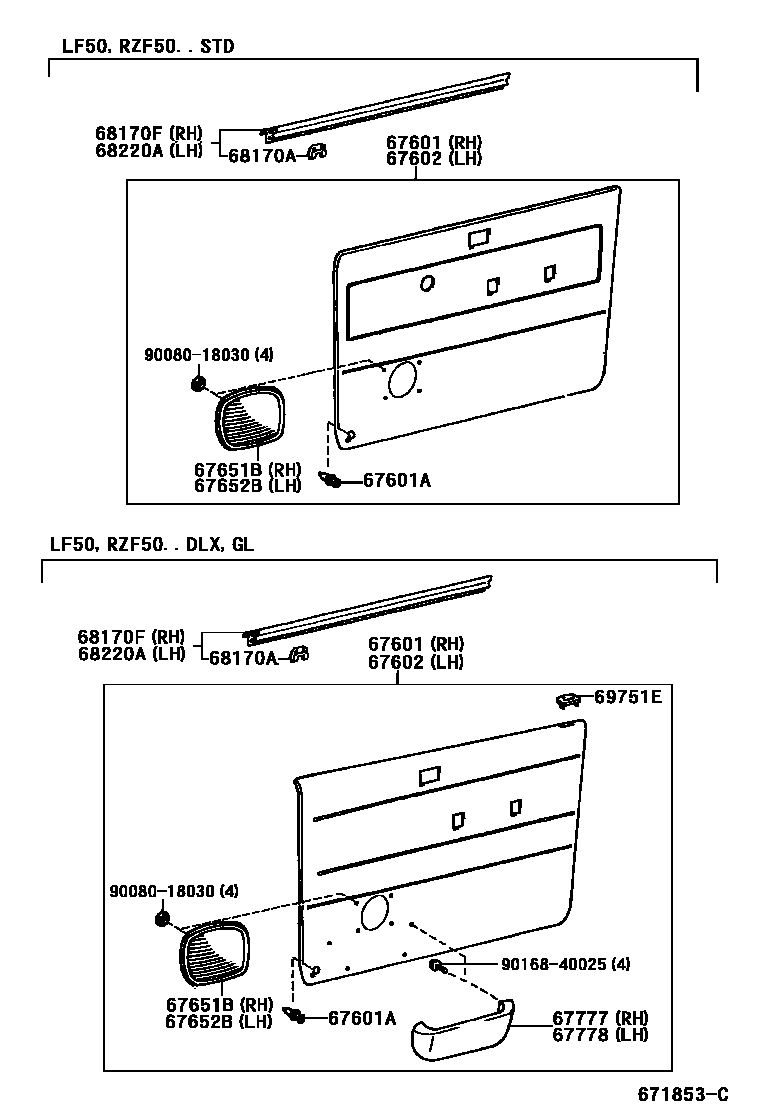

Parts diagram
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-0B180-B0i199912-200412
BLUISH GRAY,TRIM1#
main67610-0B190-B0i199912-200412
W(SPEAKER),BLUISH GRAY,TRIM1#
main67610-0B200-B1i199912-200209
DOOR TRIM=TYPE B-*104,BLUISH GRAY,TRIM1#
main67610-0B210-B1i199912-200209
DOOR TRIM=TYPE B-*104 & W(SPEAKER),BLUISH GRAY,TRIM1#
main67610-0B210-B2i199912-200209
DOOR TRIM=TYPE C-*104 & W(SPEAKER),BLUISH GRAY,TRIM1#
main67610-0B220-B1i199912-200209
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67610-0B230-B1i199912-200209
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM1#
main67610-0B240-B1i200201-200209
BLUISH GRAY,TRIM1#
main67610-0B390-B1i199912-200209
GST PACKAGE & W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67610-0B400-B2i199912-200209
GST PACKAGE & W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM1#
main67610-0B540-B0i199912-200209
GST PACKAGE,BLUISH GRAY,TRIM1#
main67610-0B550-B0i199912-200209
GST PACKAGE & W(SPEAKER),BLUISH GRAY,TRIM1#
main67610-0B830-B1i200209-200412
BLUISH GRAY,TRIM1#
main67610-0B840-B1i200209-200412
W(SPEAKER),BLUISH GRAY,TRIM1#
main67610-0B860-B0i200209-200412
BLUISH GRAY,TRIM1#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-12050×20i199912-200112
main90467-10161×20i200112-200310
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-0B180-B0i199912-200412
BLUISH GRAY,TRIM1#
main67620-0B190-B0i199912-200412
W(SPEAKER),BLUISH GRAY,TRIM1#
main67620-0B200-B1i199912-200209
DOOR TRIM=TYPE B-*104,BLUISH GRAY,TRIM1#
main67620-0B210-B1i199912-200209
DOOR TRIM=TYPE B-*104 & W(SPEAKER),BLUISH GRAY,TRIM1#
main67620-0B210-B2i199912-200209
DOOR TRIM=TYPE C-*104 & W(SPEAKER),BLUISH GRAY,TRIM1#
main67620-0B220-B1i199912-200209
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67620-0B230-B1i199912-200209
DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM1#
main67620-0B240-B1i200201-200209
BLUISH GRAY,TRIM1#
main67620-0B390-B1i199912-200209
GST PACKAGE & W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67620-0B400-B1i199912-200209
GST PACKAGE & W(POWER WINDOW & SPEAKER),BLUISH GRAY,TRIM1#
main67620-0B550-B0i199912-200209
GST PACKAGE,BLUISH GRAY,TRIM1#
main67620-0B560-B0i199912-200209
GST PACKAGE & W(SPEAKER),BLUISH GRAY,TRIM1#
main67620-0B840-B1i200209-200412
BLUISH GRAY,TRIM1#
main67620-0B850-B1i200209-200412
W(SPEAKER),BLUISH GRAY,TRIM1#
main67620-0B860-B0i200209-200412
BLUISH GRAY,TRIM1#
67651BGRILLE, SPEAKER DOOR, RH
main67651-0B070-B0i199912-200209
BLUISH GRAY,TRIM1#
67652BGRILLE, SPEAKER DOOR, LH
main67651-0B070-B0i199912-200209
BLUISH GRAY,TRIM1#
67777POCKET, FRONT DOOR TRIM, RH
main67777-0B030-B0i199912-200412
BLUISH GRAY,TRIM1#
67778POCKET, FRONT DOOR TRIM, LH
main67778-0B030-B0i200201
BLUISH GRAY,TRIM1#
68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
main68211-10030×12i199912
68170FWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER RH
main68170-0B040i199912
main68170-0B050i199912
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
main68220-0B030i199912
main68220-0B040i199912
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-0B030-B0×2i199912-200412
BLUISH GRAY,TRIM1#
9008018030
main90080-18030
9016840025
main90168-40025

13 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota QUALIS

This section contains 36 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota QUALIS. Key components include: CLIP, DOOR WINDOW GLASS, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH.
