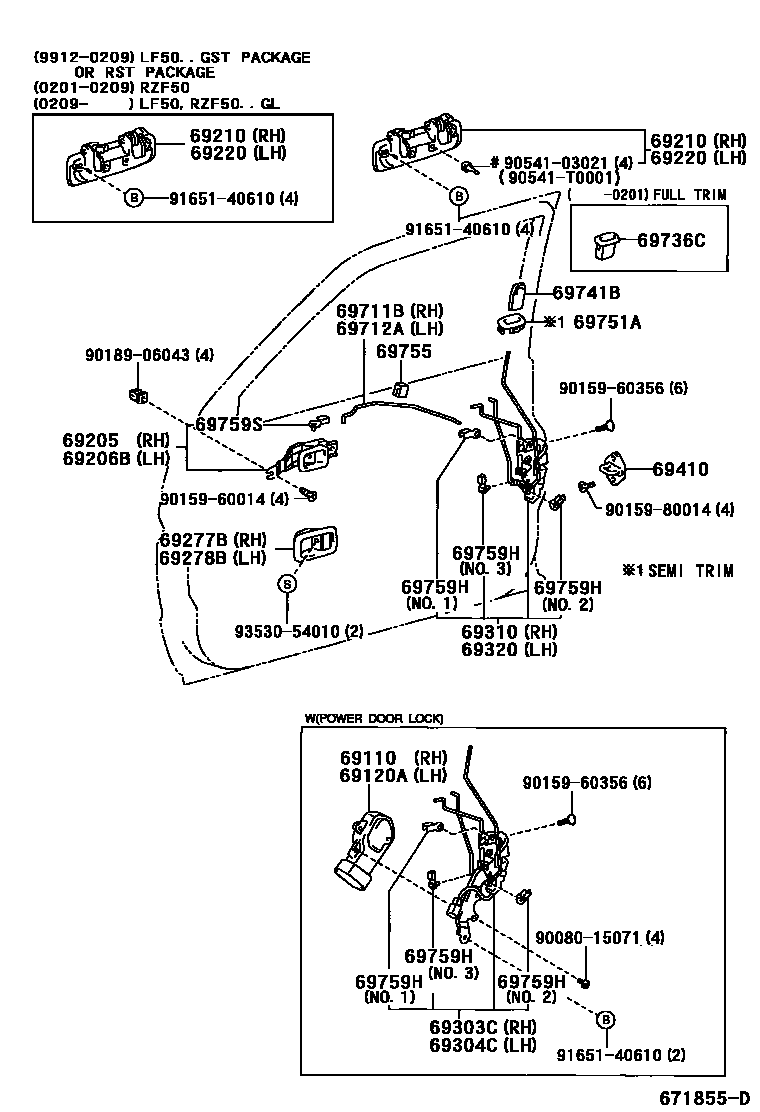

Toyota QUALIS — FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLUISH GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLUISH GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLUISH GRAY,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLUISH GRAY,TRIM1#
69303CLOCK SUB-ASSY, FRONT DOOR, RH
69304CLOCK SUB-ASSY, FRONT DOOR, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
BLUISH GRAY,TRIM1#
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
BLUISH GRAY,TRIM1#
69755SILENCER, FRONT DOOR LOCK LINK
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
NO.3:REFER TO ILLUSTRATION,RH
NO.3:REFER TO ILLUSTRATION,LH
NO.1:REFER TO ILLUSTRATION,LH
NO.1:REFER TO ILLUSTRATION,RH
NO.2:REFER TO ILLUSTRATION,LH
NO.2:REFER TO ILLUSTRATION,RH
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
9008015071
main90080-15071
9015960014
main90159-60014
9015960356
main90159-60356
9015980014
main90159-80014
9018906043
main90189-06043
9054103021
main90541-03021
90541T0001
main90541-T0001
9165140610
main91651-40610
9353054010
main93530-54010
30 parts on this diagram · 1 diagram in section
