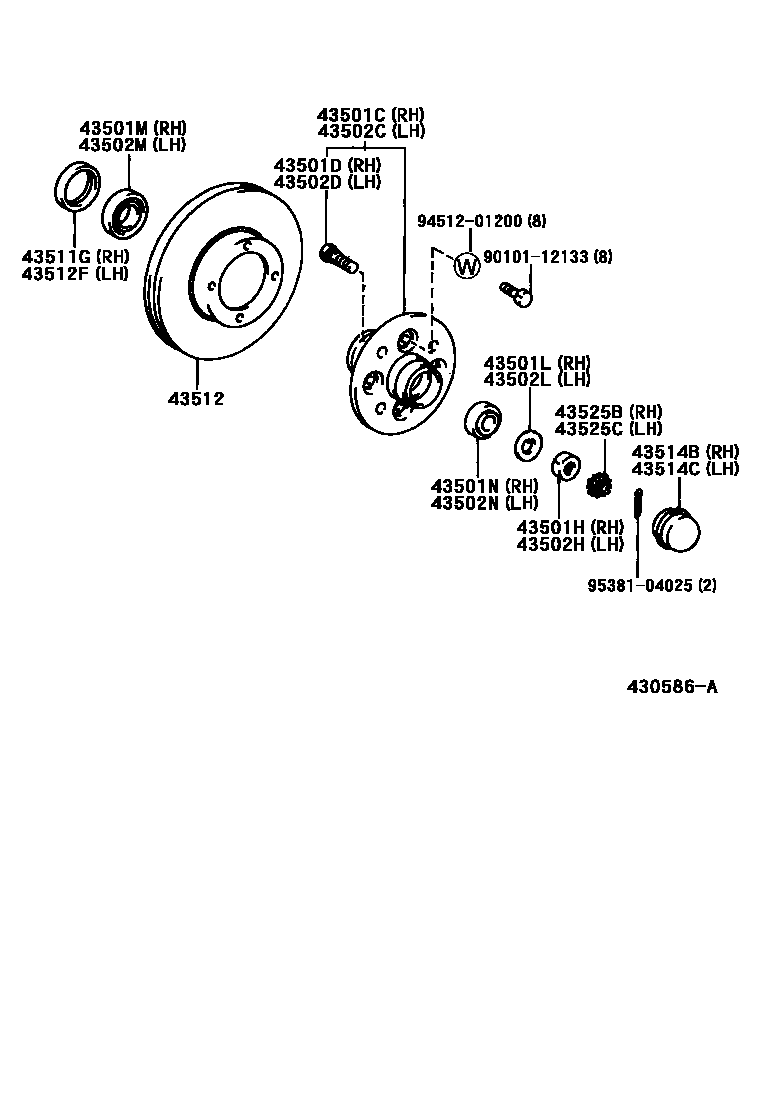

Toyota QUALIS — FRONT AXLE HUB
43501CHUB SUB-ASSY, FRONT AXLE, RH
(L)
(J)
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
(L)
(J)
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
(L)
(J)
43502CHUB SUB-ASSY, FRONT AXLE, LH
(L)
(J)
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
(L)
(J)
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
(L)
(J)
43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)
43512DISC, FRONT
(L)
(J)
43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9010112133
main90101-12133
9451201200
main94512-01200
9538104025
main95381-04025
22 parts on this diagram · 1 diagram in section
