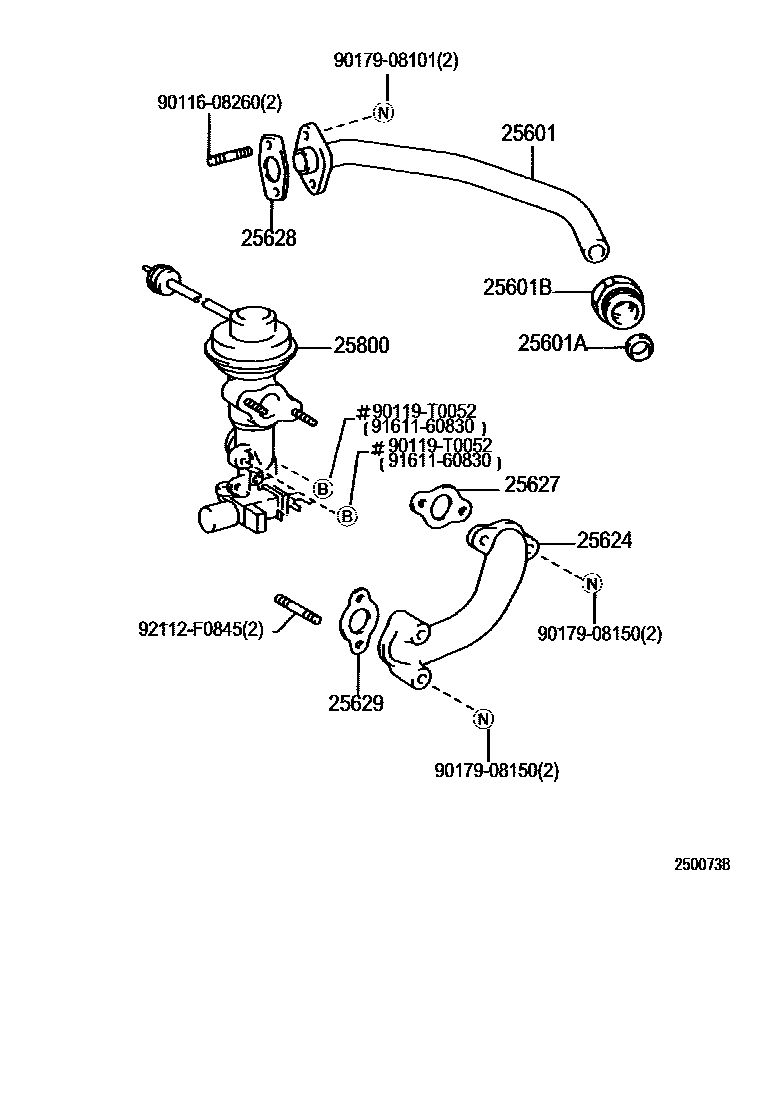

Toyota QUALIS — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54090i200003-200412

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-25001i200003-200412

25601BNUT, UNION, EGR PIPE, NO.1

main90402-33001i200003-200412

25624ADAPTER, EGR VALVE

main25624-54060i200003-200412

25627GASKET, EGR VALVE

main25627-54011i200003-200412

25628GASKET, EGR INLET

main25628-54012i200003-200412

25629GASKET, EGR VALVE ADAPTER

main25629-54011i200003-200412

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-54200i200003-200412

9011608260

main90116-08260

90119T0052

main90119-T0052

9017908101

main90179-08101

9017908150

main90179-08150

9161160830

main91611-60830

92112F0845

main92112-F0845

14 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota QUALIS

This section contains 14 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota QUALIS. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, ADAPTER, EGR VALVE, GASKET, EGR VALVE.
