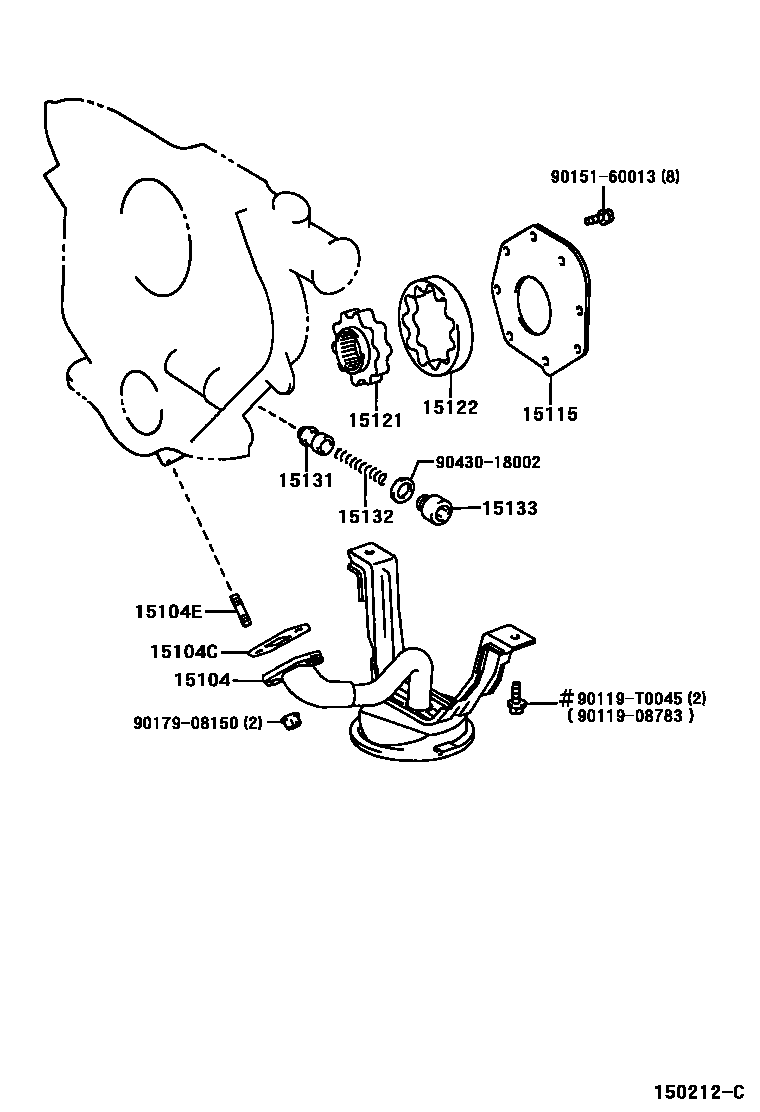

Toyota QUALIS — ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-05030i199912-200403

(L)

main15104-54120i199912-200412

(J)

main15104-75040i200201-200412

15104CGASKET(FOR OIL STRAINER)

main15149-05020i199912-200403

(L)

main15149-54012i199912-200008

(J)

main15149-54030i200008-200412

(J)

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816×2i199912-200208

main92122-80816×2i200208-200412

15115COVER, OIL PUMP

main15115-54022i199912-200412

main15115-75051i200201-200412

15121GEAR, OIL PUMP DRIVE

main15121-54020i199912-200412

15122GEAR, OIL PUMP DRIVEN

main15122-54020i199912-200412

15131VALVE, OIL PUMP RELIEF

main15131-24010i200201-200412

main15131-54010i199912-200412

15132SPRING, OIL PUMP RELIEF VALVE

main15132-54010i199912-200412

main15132-75010i200201-200412

15133PLUG, OIL PUMP RELIEF VALVE

main15133-54010i199912-200412

9011908783

main90119-08783

90119T0045

main90119-T0045

9015160013

main90151-60013

9017908150

main90179-08150

9043018002

main90430-18002

14 parts on this diagram · 2 diagrams in section

ENGINE OIL PUMP for Toyota QUALIS

This section contains 22 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota QUALIS. Key components include: RING, O(FOR OIL PUMP), ROTOR SET, OIL PUMP, STRAINER SUB-ASSY, OIL, GASKET(FOR OIL STRAINER), BOLT, STUD(FOR OIL STRAINER).
