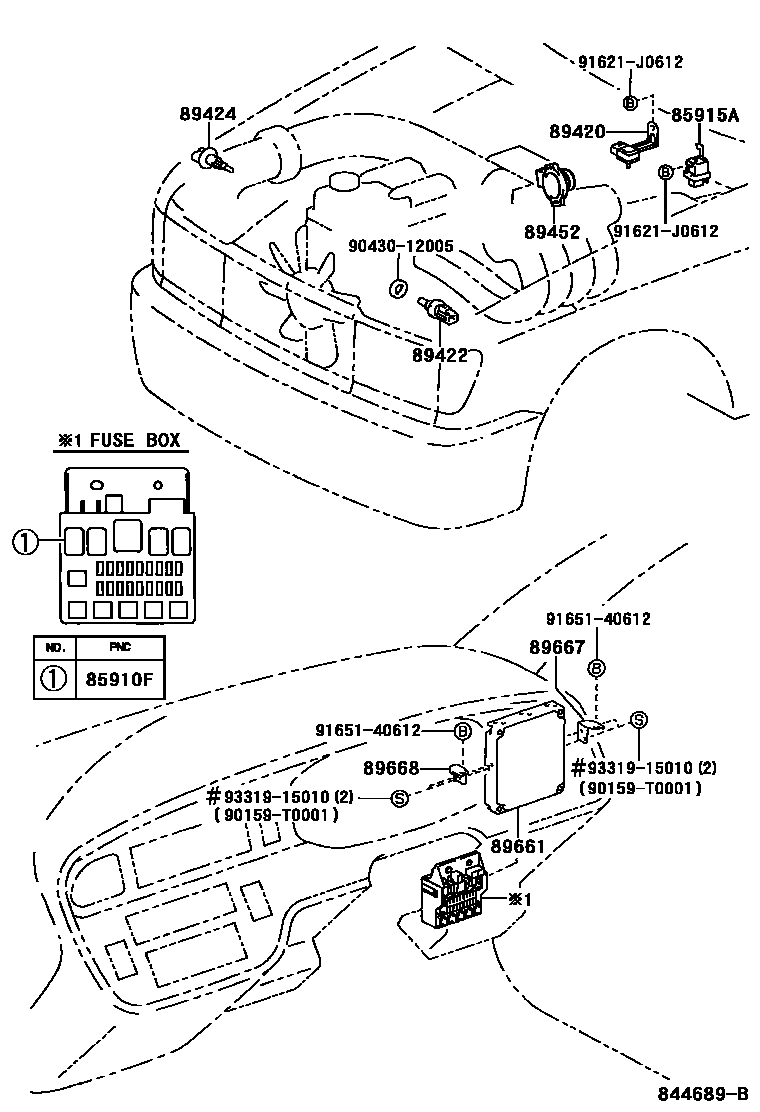

Toyota QUALIS — ELECTRONIC FUEL INJECTION SYSTEM
85910FRELAY, COMPUTER (FOR EFI)
85915ARELAY, MAIN
89420SENSOR ASSY, VACUUM
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
90159T0001
main90159-T0001
9043012005
main90430-12005
91621J0612
main91621-J0612
9165140612
main91651-40612
9331915010
main93319-15010
14 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota QUALIS
This section contains 14 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota QUALIS. Key components include: RELAY, COMPUTER (FOR EFI), RELAY, MAIN, SENSOR ASSY, VACUUM, SENSOR, WATER TEMPERATURE (FOR E.F.I.), SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.).
