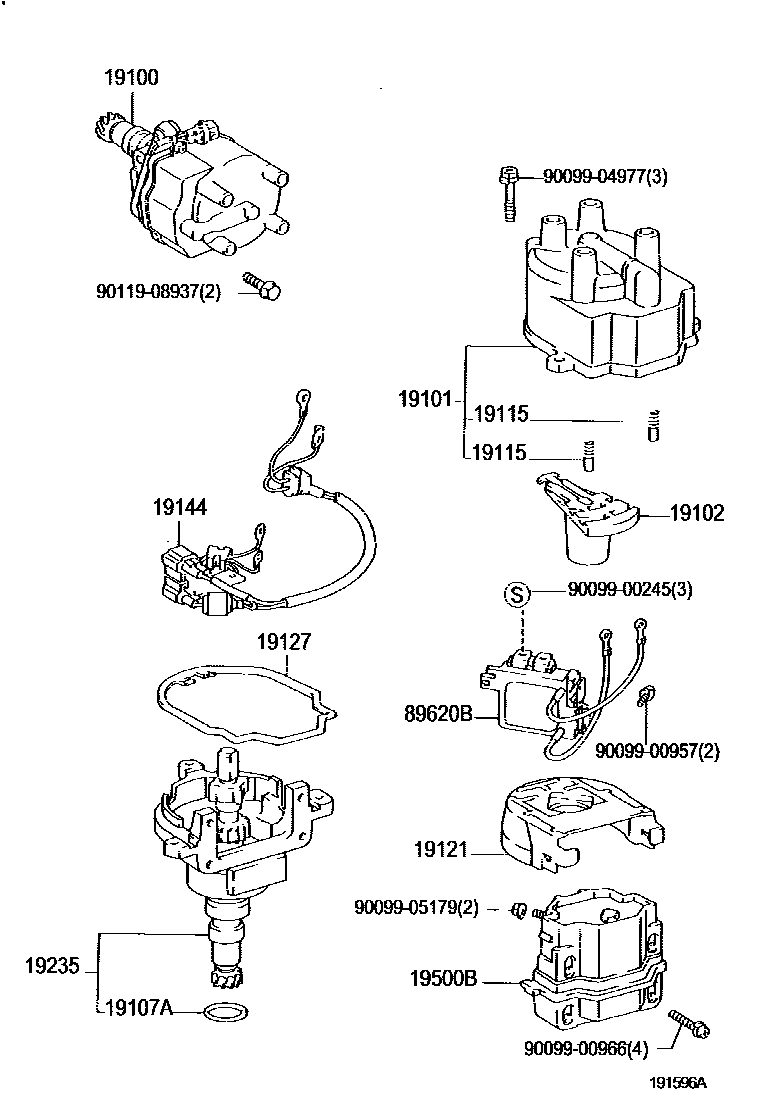

Toyota QUALIS — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19020-75031i1RZE..RZF50200201-200412

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-75010i1RZE..RZF50200201-200412

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16010i1RZE..RZF50200201-200412

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i1RZE..RZF50200201-200412

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i1RZE..RZF50200201-200412

19121COVER, DUST PROOF

main19121-11080i1RZE..RZF50200201-200412

19127PACKING, DUST PROOF

main19127-15120i1RZE..RZF50200201-200412

19144LEAD, DISTRIBUTOR BREAKER

main19144-75030i1RZE..RZF50200201-200412

19235HOUSING, DISTRIBUTOR

main19235-75030i1RZE..RZF50200201-200412

19500BCOIL ASSY, IGNITION

main90919-02164i1RZE..RZF50200201-200412

89620BIGNITER ASSY

main89620-12440iRZF50200201-200412

9009900245

main90099-00245

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9011908937

main90119-08937

17 parts on this diagram · 1 diagram in section
